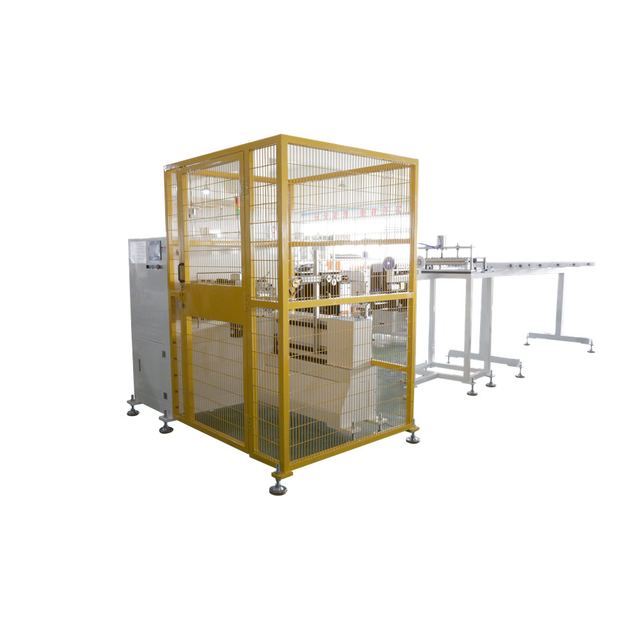

Stator Winding Machine
Model DR650
Overview
Stator Winding Machine supplied by SMT Intelligent Device Manufacturing (Zhejiang) Co., Ltd. Key published specifications: Swing diameter ≤650mm; Effective length of the tooling ≤400mm; Parallel wire number ≤20pcs; Wire diameter 0.3-1.2mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Swing diameter | ≤650mm |
|---|---|
| Effective length of the tooling | ≤400mm |
| Parallel wire number | ≤20pcs |
| Wire diameter | 0.3-1.2mm |
| Wire arraying width | 400mm |
| Power supply | 220V/50/60Hz 2.2Kw |
| Weight | 950kgs |
| Air Pressure | 0.4-0.6MPa |
| Dimension | (L)1500*(W)1700*(H)1550mm |
| Winding Head | 2pcs |
| Certification | ISO9001 / SGS |
