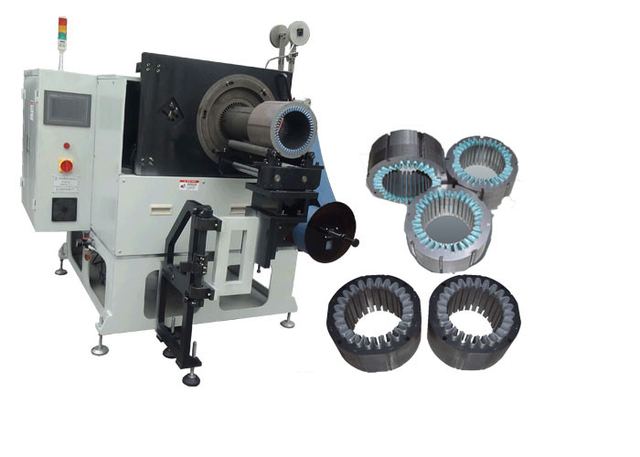

Motor Production Slot Insulation Machine , Motor Winding Equipment

Model CW200

Motor Production Slot Insulation Machine , Motor Winding Equipment

Overview

Motor Production Slot Insulation Machine , Motor Winding Equipment, listed by SMT Intelligent Device Manufacturing (Zhejiang) Co., Ltd in Huzhou, Zhejiang. Core length 60-190mm, stator i.d. 80 -150mm and stator o.d. ≤210mm are among the specifications published.

Technical specifications

Core length60-190mm
Stator I.D.80 -150mm
Stator O.D.≤210mm
Height of Edge Folded3-7mm
Insulation paper's thickness≤0.35mm
Efficiency0.7-1 s/s
Power Supply380V/50/60Hz 0.75Kw
Weight550kg
Machine dimension(L)1100*(W)900*(H)1500mm
Automatic GradeFull-Automatic
CertificationISO/SGS Audit
