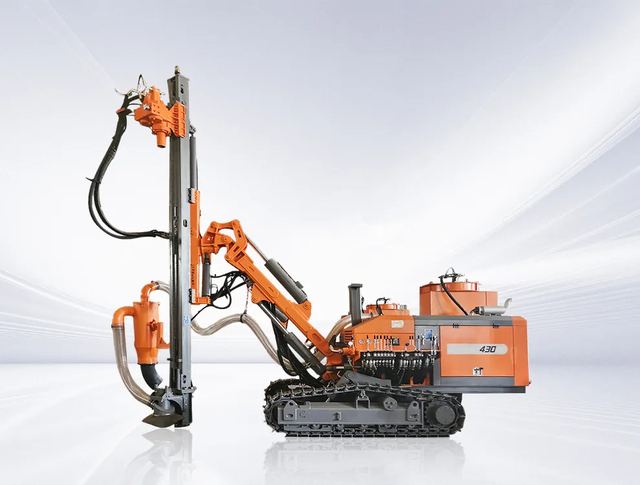

Split Open Pit DTH Drill Rig ZGYX430
Overview
Split Open Pit DTH Drill Rig ZGYX430 supplied by D Miningwell. Key published specifications: Weight 6500kg; Engine Model YC4Dk-80; Engine rated power 58kW; Drilling depth 30m. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Weight | 6500kg |
|---|---|
| Engine Model | YC4Dk-80 |
| Engine rated power | 58kW |
| Drilling depth | 30m |
| Drill pipe type | Φ76*3000mm |
| The hole dilameter | Φ90-152mm |
| Torque (max) | 3500N.m |
| Swing speed(rpm) | 0-100r/min |
| using air pressure | 0.7-2Mpa |
| Air consumption | 10-20m³/min |
| Feed force | 20kN |
| Rig lifting force | 45kN |
| Walking speed(km/h) | 3km/h |
| Transport dimension | 7370*2360*2560mm |
| Drilling Hole Diameter | Φ90-152mm |
