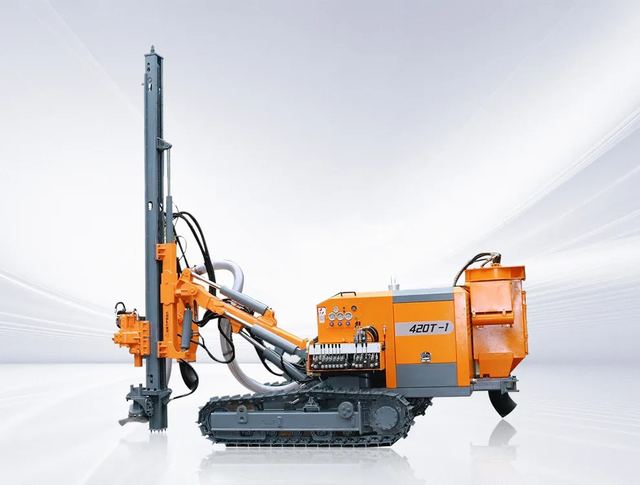

Split Open Pit Drilling Rig ZGYX-420T-1
Overview
Split Open Pit Drilling Rig ZGYX-420T-1 supplied by D Miningwell. Key published specifications: Weight 5280kg; Engine Model YC4DK100; Engine rated power 73.5kW; Drilling depth 30m. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Weight | 5280kg |
|---|---|
| Engine Model | YC4DK100 |
| Engine rated power | 73.5kW |
| Drilling depth | 30m |
| Drill pipe type | Φ76*3000mm |
| The hole dilameter | Φ110-140mm |
| Torque (max) | 3200N.m |
| Swing speed(rpm) | 60-120r/min |
| using air pressure | 0.7-2.5Mpa |
| Air consumption | 8-20m³/min |
| Feed force | 20kN |
| Rig lifting force | 45kN |
| Mode of advancement | Cylinder Chain |
| Walking speed(km/h) | 3km/h |
| Transport dimension | 5100*2324*2550mm |
| Dry Dust Collector | Standard |
| Dual Speed Walking Motor | Standard |
| Drilling Hole Diameter | Φ110-140mm |
