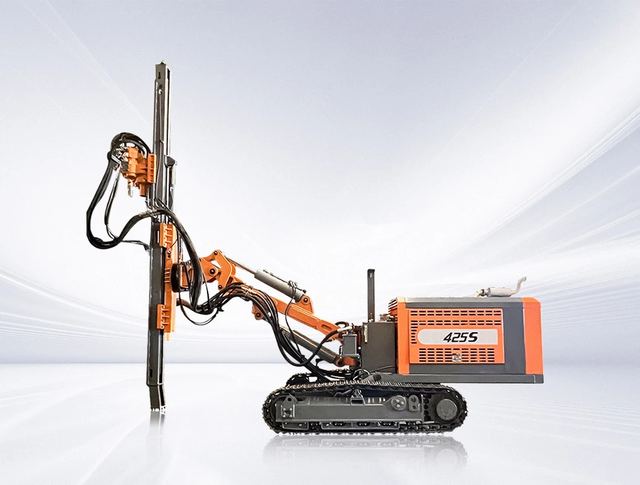

Split Anchor Drilling Rig ZGYX425S

Split Anchor Drilling Rig ZGYX425S

Overview

Split Anchor Drilling Rig ZGYX425S, from D Miningwell in Quzhou, Zhejiang. Weight 8000kg, engine model YCD4T22T-105A and engine rated power 70kW are among the specifications published.

Technical specifications

Weight8000kg
Engine ModelYCD4T22T-105A
Engine rated power70kW
rotation speed2000rpm
Drilling depth60m
Drill pipe typeΦ76*3000mm
The hole dilameterΦ105-203mm
Matching ImpactorHD45A
Torque (max)5600N.m
Swing speed(rpm)60-160r/min
Feed total length5250mm
Feed travel3180mm
Feed extension960mm
Feed speed26m/min
Feed force35KN
Rig lifting force26m/min
Mode of advancementCylinder Chain
Walking speed(km/h)2.5km/h
Traction force6KN
Ground clearance430mm
Transport dimension6900*2270*2700mm
Drilling Hole DiameterΦ105-203mm
