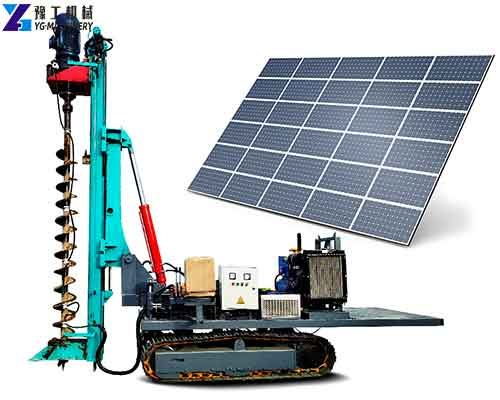

Solar Pile Driver
Overview
Solar Pile Driver supplied by YG Machinery. Listed under Excavators. Key published specifications: Overall dimensions 4700*2100*2800mm; Drill pipe rotational speed 180r/min; Track shoe width 400mm; rock hardness 6-20F. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Overall dimensions | 4700*2100*2800mm |
|---|---|
| Drill pipe rotational speed | 180r/min |
| Track shoe width | 400mm |
| rock hardness | 6-20F |
| Drilling diameter | 80-500mm |
| Drilling depth | 0-6m |
| Drill arm swing angle | left and right150° |
| Reducer torque | 13000n.m |
| Slide swing angle | left and right40° |
| Mainstream pump | triple pump |
| Driving speed | 0-3km/h |
| Hydraulic hammer flow | 50-110L/min |
| Impact frequency | 350-800BMP |
| Hydraulic system pressure | 25mpa |
| Generator power | 88kw Motor |
| Solar Pile Driver Parameter | Hydraulic photovoltaic pile driver |
