Overview

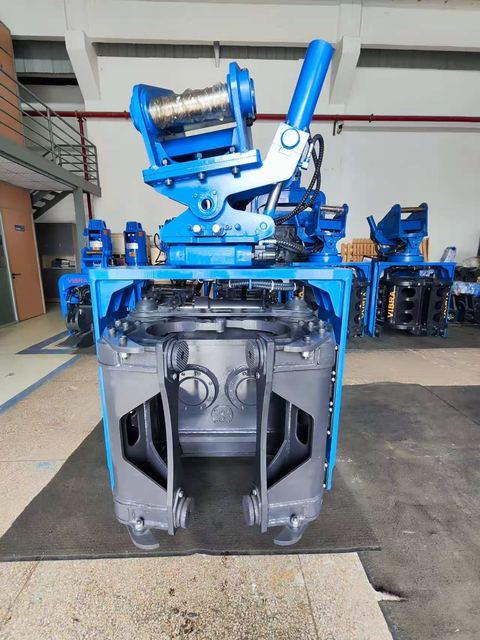

Side Grip Pile Driver supplied by Shanghai Yekun Construction Machinery Co., Ltd. Listed under Pile Drivers. Key published specifications: Certification ISO 9001:2015; Eccentric Moment 6.6 Kg·m; Centrifugal Force 656 KN; Frequency 2,300 – 3,000 Rpm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Certification	ISO 9001:2015
Eccentric Moment	6.6 Kg·m
Centrifugal Force	656 KN
Frequency	2,300 – 3,000 Rpm
Side Clamp Force	465 KN
Bottom Clamp Force	520 KN
Operation Pressure	32 MPa
Size LxWxH	1,400 × 1,315 × 3,056 Mm
Applicable Excavator	32 – 40 Tons
Frequency range	2300 – 5000 rpm
Operating pressure	32 MPa
Flow requirement (merged)	280 – 360 L/min
Rotation / tilt	360° continuous / ±30°
Dimensions (L×W×H)	1400×1315×3056 mm
Weight (incl. connector & clamp)	3870 kg
Suitable excavator	32 – 40 tons
Min. headroom (bottom clamp)	3.8 m
