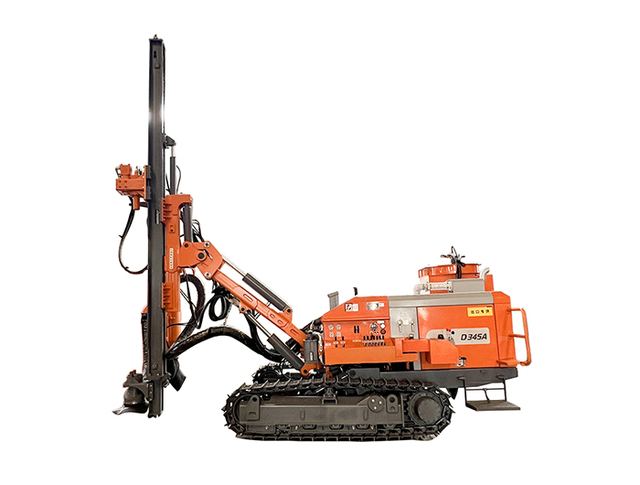

Separated DTH Drill Rigs D345A
Overview
Separated DTH Drill Rigs D345A, listed by D Miningwell in Quzhou, Zhejiang. Weight 6500kg, engine model Cummins and engine rated power 60kW are among the specifications published.
Technical specifications
| Weight | 6500kg |
|---|---|
| Engine Model | Cummins |
| Engine rated power | 60kW |
| Drilling depth | 30m |
| Drill pipe type | Φ76*3000 mm |
| The hole dilameter | Φ110-152mm |
| Walking speed(km/h) | 2.5km/h |
| Ground clearance | 280mm |
| Rig lifting force | 45kN |
| Feed extension | 960mm |
| Air consumption | 8-20m³/min |
| dimension | 2250*7000*2700mm |
| Drilling Hole Diameter | Φ110-152mm |
