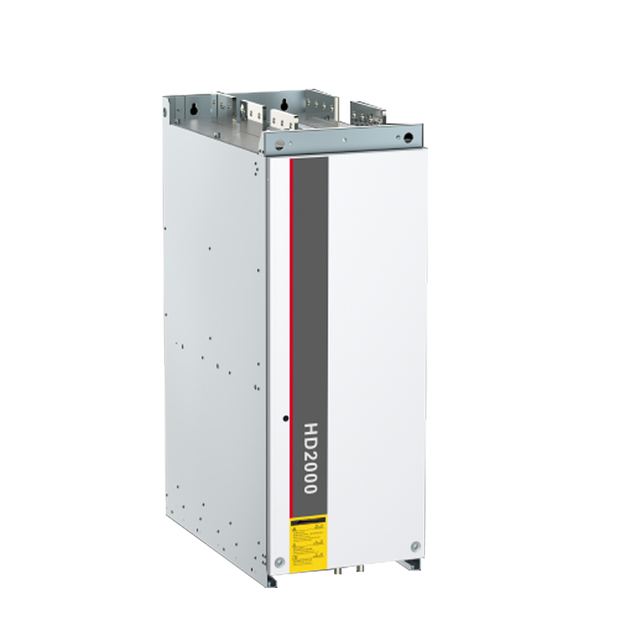

Robust Overload Capacity in HD2000 Drives: 130% Rated Current for 70 Seconds
Model HD2000-C-10-2
Overview
Robust Overload Capacity in HD2000 Drives: 130% Rated Current for 70 Seconds supplied by SENDEN TECH LIMITED. Key published specifications: Max. Single Unit Power 1400kW (Air-cooled), 2800kW (Liquid-cooled); Voltage Levels 400V, 690V, 1140V, 1380V; Max. Parallel Operation Power 11200kW (Air-cooled), 22400kW (Liquid-cooled); Model HD2000 Series Low Voltage Engineering Inverter(Liquid-cooled). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Max. Single Unit Power | 1400kW (Air-cooled), 2800kW (Liquid-cooled) |
|---|---|
| Voltage Levels | 400V, 690V, 1140V, 1380V |
| Max. Parallel Operation Power | 11200kW (Air-cooled), 22400kW (Liquid-cooled) |
| Model | HD2000 Series Low Voltage Engineering Inverter(Liquid-cooled) |
| Input frequency | (50Hz/60Hz)±6% |
| Output voltage | Input voltage * 1.32 (Under full-load condition) |
| Operating efficiency | ≥99% Efficiency |
| Power factor | Adjustable (Factory setting at 1) |
| Output frequency | 0 ~ 500Hz |
| Speed range | V/F:1:50 OLVC:1:200 CLVC:1:1000 |
| Speed stability | OLVC:0.2% CLVC:0.01% |
| Speed fluctuation | OLVC:0.2% CLVC:0.1% |
| Starting torque | OLVC:150%(0.5Hz) CLVC:200%(0Hz) |
| Torque control | V/F: Unsupported OLVC:Supported CLVC: supported |
| Torque accuracy | OLVC:5% CLVC:5% |
| Torque response time | OLVC:5ms CLVC:5ms |
| Speed response time | OLVC:100ms CLVC:100ms |
| Dynamic speed drop equivalent | OLVC:0.5%*s CLVC:0.3%*s |
| Humidity | 5% ~ 95% Mon-condensing |
| Altitude | ≤4000m, Derating applies from 2000m to 4000m |
| Protection level | IP00 / IP20 / IP40 |
| Safety level | Complies with UL 508C-2004 |
| Cooling method | Liquid-cooled |
| Robust Overload Capacity in HD2000 Drives | 130% Rated Current for 70 Seconds |
| Protection functions | Overheating protection, soft-start protection, Interlock |
