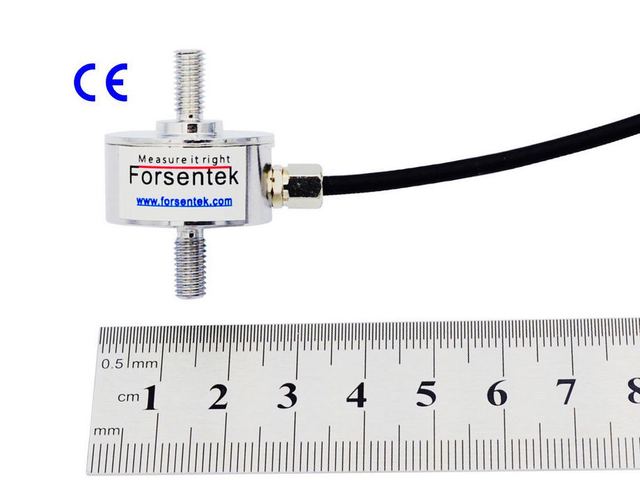

Push Pull Load Cell 500N Pull Force Sensor 1kN Tension Load Cell
Model FL25
Overview
Push Pull Load Cell 500N Pull Force Sensor 1kN Tension Load Cell supplied by Forsentek Co. Limited. Key published specifications: Type Push Pull Load Cell; Load Range 50N 100N 200N 500N 1kN; Output Analog Transducer; Rated output 2.0mV/V. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Type | Push Pull Load Cell |
|---|---|
| Load Range | 50N 100N 200N 500N 1kN |
| Output | Analog Transducer |
| Rated output | 2.0mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.5% of R.O. |
| Hysteresis | ±0.5% of R.O. |
| Nonrepeatability | ±0.2% of R.O. |
| Creep(10min) | ±0.1% of R.O. |
| Safe overload | 150% of F.S. |
| Ultimate overload | 200% of F.S. |
| Compensated temperature | -10...+40 o C |
| Operating temperature | -20...+60 o C |
| Temperature shift zero | ±0.02% R.O./ o C |
| Temperature shift span | ±0.02% R.O./ o C |
| Input resistance | 700±30 ohms |
| Output resistance | 700±5 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP64 |
| Material of element | Stainless steel |
| Cable | Ø3*4000mm 4-core shielded |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
| Connection | M5/M6 Threaded Rod |
