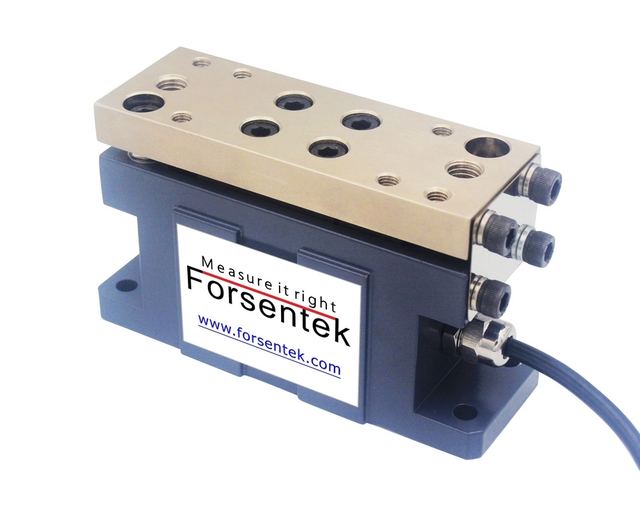

Pillow Block Tension Sensor 0-2000N Under Pillow Block Load Cell
Model FZTF
Overview
Pillow Block Tension Sensor 0-2000N Under Pillow Block Load Cell supplied by Forsentek Co. Limited. Key published specifications: Rated output 2.0 mV/V; Excitation 3-12V; Zero balance ±0.05mV/V; Nonlinearity ±0.3% of full capacity. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Rated output | 2.0 mV/V |
|---|---|
| Excitation | 3-12V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.3% of full capacity |
| Hysteresis | ±0.3% of full capacity |
| Nonrepeatability | ±0.1% of full capacity |
| Creep(3min) | ±0.1% of full capacity |
| Safe overload | 150% of full capacity |
| Ultimate overload | 200% of full capacity |
| Compensated temperature | 0...+40 o C |
| Operating temperature | -20...+60 o C |
| Temperature shift zero | ±0.02% R.O./ o C |
| Temperature shift span | ±0.02% R.O./ o C |
| Input resistance | 380±30 ohms |
| Output resistance | 352±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP50 |
| Material of element | Alloy steel |
| Cable | Ø5.3*2000mm 4-core shielded |
| Wiring code @ Tension | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
| Capacity | 100N 200N 300N 500N 1kN 2kN |
