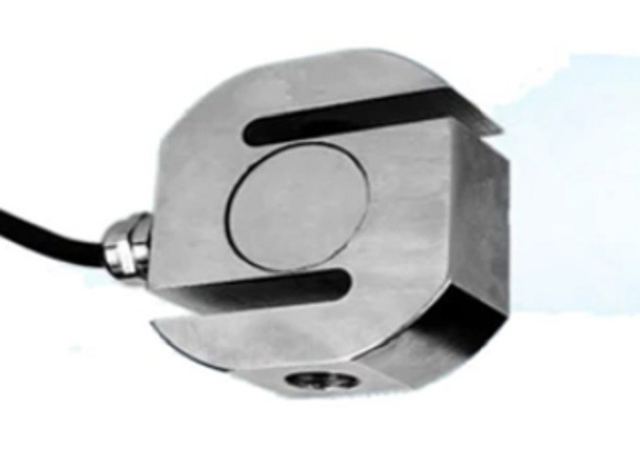

Alloy Steel Stainless Steel 100KG-20T Tension S Type Load Cell
Model INFS-028
Overview
Alloy Steel Stainless Steel 100KG-20T Tension S Type Load Cell supplied by Innovation Electronic Co.,Ltd. Listed under Load Cells. Key published specifications: Rated Capacities(Emax) 100-20000KG/250lb-40klb; Rated Output 2.0/3.0±10%mV/V; Material Alloy Steel/Stainless Steel; Application Hopper Scale. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Rated Capacities(Emax) | 100-20000KG/250lb-40klb |
|---|---|
| Rated Output | 2.0/3.0±10%mV/V |
| Material | Alloy Steel/Stainless Steel |
| Application | Hopper Scale |
| Capacity | 100-20000KG |
| Zero Balance | ±2%F.S. |
| Non-linearity | 0.05%F.S. |
| Hysteresis | 0.05%F.S. |
| Repeatability | 0.05%F.S. |
| (30 )Creep (30min) | 0.03%F.S. |
| Temp Effect on Output | 0.03%F.S./10 ºC |
| Temp Effect on Zero | 0.03%F.S./10 ºC |
| Load Cell Technical Parameter | Capacity |
