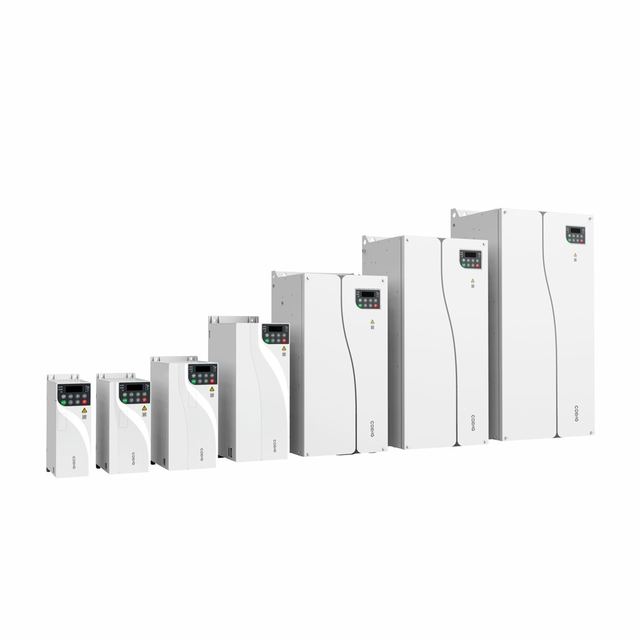

Programmable 16-Step Multi-Speed Operation via Terminal Control for Complex Sequences
Model HV350
Overview
Programmable 16-Step Multi-Speed Operation via Terminal Control for Complex Sequences supplied by SENDEN TECH LIMITED. Key published specifications: Document HV350.xlsx; Input Power Frequency 50Hz/60Hz ±5%; Output Voltage 0V~Input Voltage; Output Frequency 0～600Hz. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Document | HV350.xlsx |
|---|---|
| Input Power Frequency | 50Hz/60Hz ±5% |
| Output Voltage | 0V~Input Voltage |
| Output Frequency | 0～600Hz |
| Master Control Motor Type | Asynchronous Motor |
| Item | Specification Description and Technical Data |
| Control mode | V/F, OLVC(Open-loop Vector Control) |
| Speed range | 1:100 V/F; 1:200 OLVC |
| Starting torque | OLVC: 150%(0.25Hz) |
| Torque precision | ±5% (OLVC, above 5Hz) |
| Torque ripple | ≤±5%, in Vector control mode |
| Speed stability | OLVC, 0.2% |
| Torque response | ≤5ms, in Vector control mode |
| Acceleration/deceleration time | 0.0s~3200.0s; 0.0min~3200.0min |
| Input frequency resolution | Digital setting: 0.01Hz, Analog setting: maximum frequency *0.025% |
| Simple PLC, Multi-speed control | 16 speed segments supported through control terminals |
| Fixed length control | Control with given length |
| Analog input terminals | AI1; AI2: 0V~10V/ 0 (4)mA~20mA |
| Analog output terminals | 1-channel 0V ~ 10V/0(4)mA ~ 20mA |
| Ambient temperature | -25℃～+40℃ (Running with derating allowed between 40~55) |
| Humidity | 15% ~ 95%, No condensation |
| Vibration | 3M3, IEC60721-3-3 |
| Storage temperature | −40°C~+70°C |
| Installation method | Installed in a cabinet |
| Protection rating | IP20 |
| Cooling method | Air cooling |
| Input Voltage | 380V (-15%) To 480V (+10%) Phase: Three-phase |
