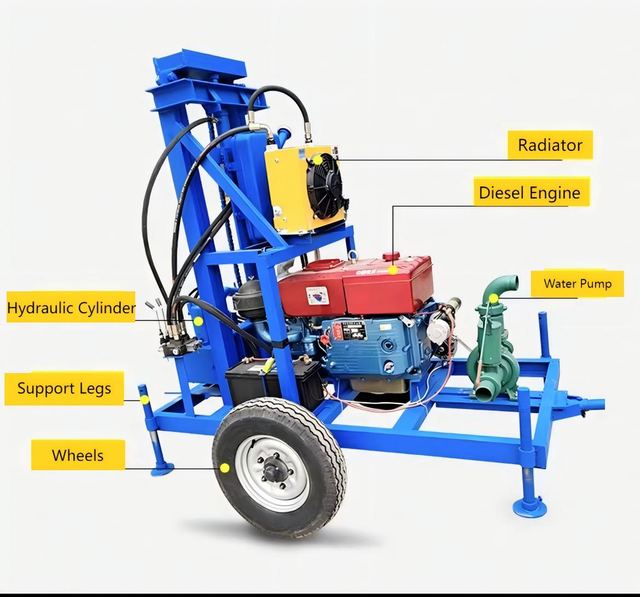

Portable Water Well Drilling Rig MWS100
Model MW-180
Overview
Portable Water Well Drilling Rig MWS100, from D Miningwell in Quzhou, Zhejiang. Dimension 930*1900*1720mm Machine, weight 600+500kg and the pump flow 30m³/h are among the specifications published.
Technical specifications
| Dimension | 930*1900*1720mm Machine |
|---|---|
| Weight | 600+500kg |
| The pump flow | 30m³/h |
| Hoisting height | 2m |
| Drill rod diameter | 50mm |
| Drill rod length | 1.5m |
| Drill depth | 100m |
| Drill diameter | ≤300mm |
| Lifting power | 2000kg |
| Standard | Drill rod 40m Drill bit*2 Water pump Hoses |
