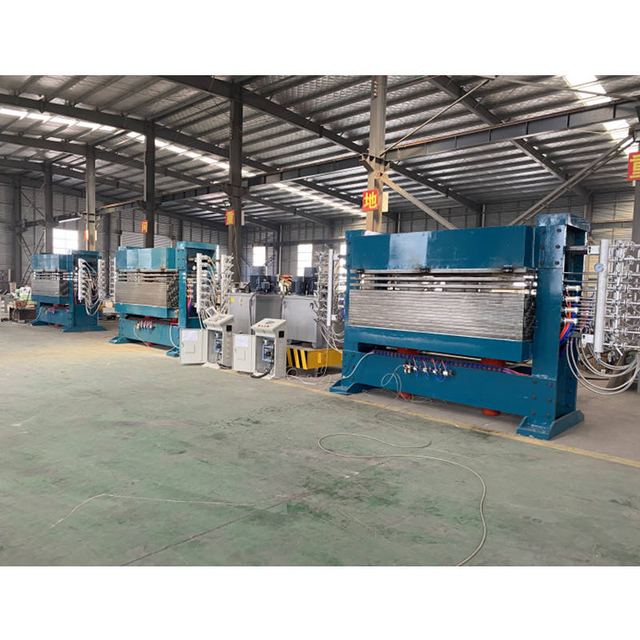

Plywood Hot Press Dryer
Overview
Plywood Hot Press Dryer supplied by Linyi Guoyu Machinery Co.,Ltd. Key published specifications: Total Thickness for Multi-layer Stacking Up to 25–30 mm; Drying Capacity 1CBM/Hour; Nominal Pressure 80 tons (kN); Cylinder Diameter 120 mm (Wuxi brand). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Total Thickness for Multi-layer Stacking | Up to 25–30 mm |
|---|---|
| Drying Capacity | 1CBM/Hour |
| Nominal Pressure | 80 tons (kN) |
| Cylinder Diameter | 120 mm (Wuxi brand) |
| Stroke | 1050 mm |
| Max. Pressure | ≤15 MPa |
| Low-Pressure Pump Flow | 65 L/min (1 unit) |
| Low-Pressure Pump Pressure | ≤3 MPa |
| Low-Pressure Pump Power | 15 kW (1 unit) |
| High-Pressure Pump + Motor Power | 16 L/min + 3 kW motor |
| Unit Pressure on Board | 10 kgf/cm² |
| Overall Dimensions | 3300 × 1370 × 2450 mm |
| Steel Plate Thickness | 8 mm |
| Frame Leg Width | 200 mm |
| Weight | Around 20 tons |
