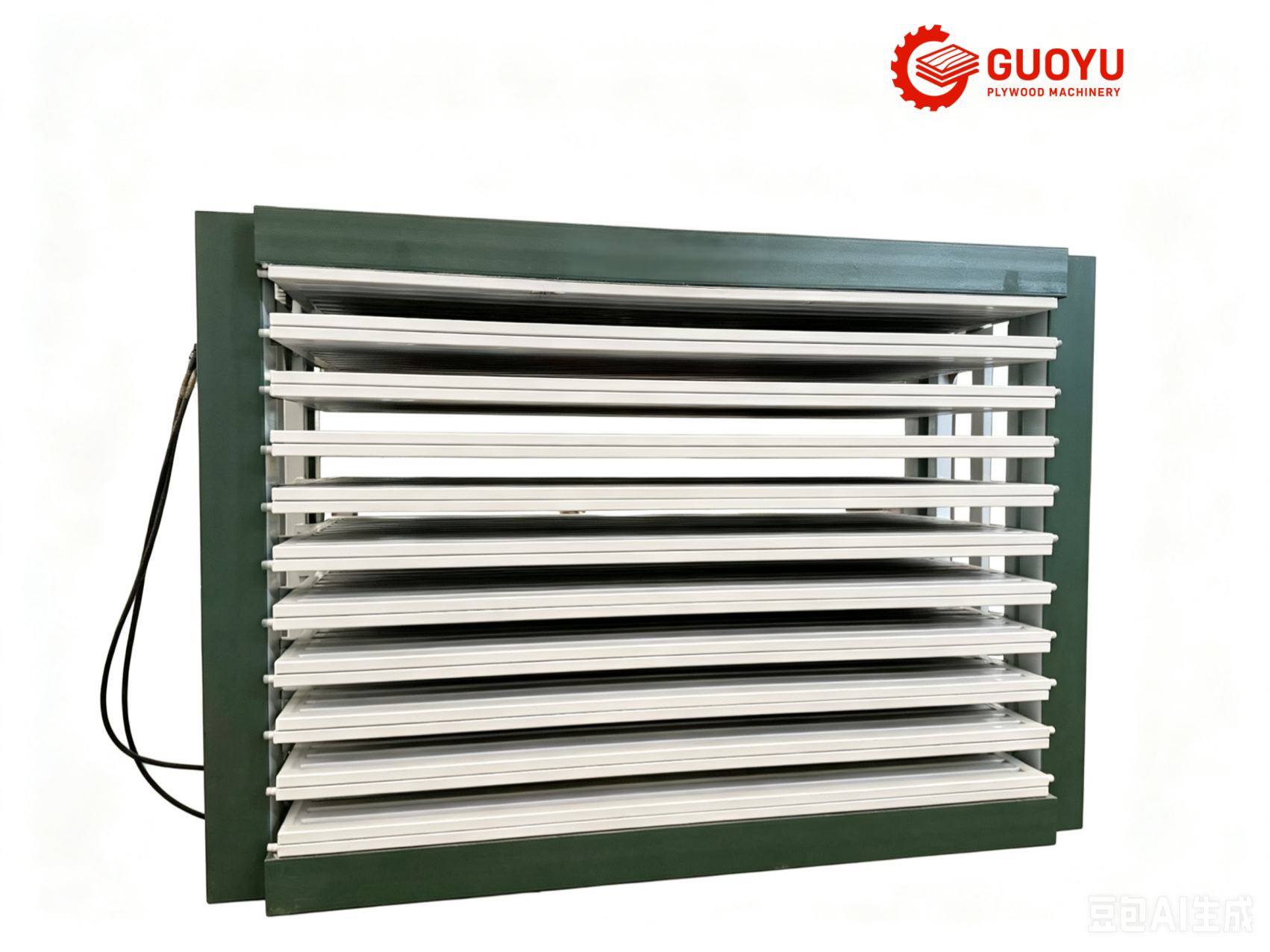

80-Ton 10-Layer Core Veneer Hot-pressing Dryer
Overview
80-Ton 10-Layer Core Veneer Hot-pressing Dryer supplied by Linyi Guoyu Machinery Co.,Ltd. Key published specifications: Rated Pressure (kN) 80 ton; Feeding Direction Horizontal loading; Quantity of Hot Platens 16 pcs; Number of Plunger Cylinders 2 pcs. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Rated Pressure (kN) | 80 ton |
|---|---|
| Feeding Direction | Horizontal loading |
| Quantity of Hot Platens | 16 pcs |
| Number of Plunger Cylinders | 2 pcs |
| Cylinder Diameter (mm) | 120, Wuxi made |
| Closing Time (s) | 20s |
| Low Pressure Pump | 65 L/min, 1 set; Max pressure ≤3MPa, Power:15kW |
| High Pressure Pump & Motor | Flow:16 L/min, Motor Power:3kW |
| Frame | 150×200 standard square tube, 8mm thickness |
| Upper & Lower Beam (mm) | 200 each |
| Approximate Weight | 20 tons |
| Drying Capacity | 7~8 m³/h |
| Final moisture | setpoint |
| Heating Medium | Thermal oil or steam |
| Flow | 16 L/min, Motor Power:3kW |
