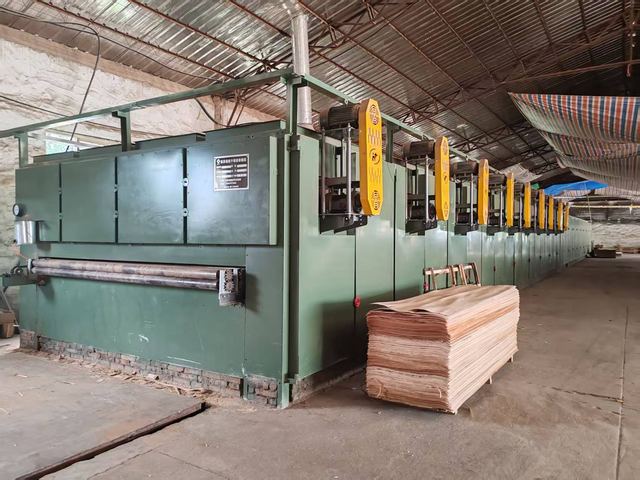

Plywood Core Veneer Roller Dryer
Overview
Plywood Core Veneer Roller Dryer supplied by Linyi Guoyu Machinery Co.,Ltd. Key published specifications: Heating Medium Thermal oil or steam; Working Width 3 m (roller length); Working Layers 4 layers; Heating Chamber Length 36 m (18 sections × 2 m). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Heating Medium | Thermal oil or steam |
|---|---|
| Working Width | 3 m (roller length) |
| Working Layers | 4 layers |
| Heating Chamber Length | 36 m (18 sections × 2 m) |
| Cooling Chamber Length | 4 m (2 sections × 2 m) |
| Transmission Power | 30 kW (7.5 kW × 4) |
| Hot Air Fan Power | 198 kW (11 kW × 18) |
| Cold Air Fan Power | 11 kW (5.5 kW × 2) |
| Multi-Layer Feeder Power | 8.5 kW × 1 |
| Total Power | 247.5 kW |
| Moisture Exhaust | 6 outlets, 300 mm diameter, frequency-controlled |
| Feeding Speed | 1 – 30 m/min |
| Drying Thickness | 1.0 – 4.0 mm |
| Drying Capacity | 6 m³/h |
| Roller Material | #102 Carbon Steel |
| 4-Ft Lifting Platforms | 2 sets |
