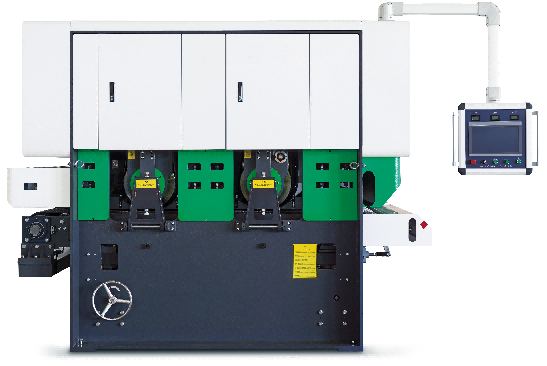

Plywood Calibration Sanding Machine
Overview
Plywood Calibration Sanding Machine supplied by Linyi Guoyu Machinery Co.,Ltd. Key published specifications: Working width 40–1300 mm; Working thickness 3–80 mm; Working length ≥750 mm; Sanding belt speed 24 m/s. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Working width | 40–1300 mm |
|---|---|
| Working thickness | 3–80 mm |
| Working length | ≥750 mm |
| Sanding belt speed | 24 m/s |
| Feeding speed | 5–40 m/min |
| Sanding belt size | 1340 × 2800 mm |
| Diameter of contact rollers | 400 mm steel roller, 400 mm rubber roller |
| Total motor power | 142.5 kW |
| Main motor power | 75 kW, 55 kW |
| Feeding motor power | 11 kW |
| Lifting motor power | 0.75 kW |
| Brushing motor power | 0.75 kW |
| Voltage requirement | 380 V, 50 Hz, 3 Phase |
| Working air pressure | 0.55 MPa |
| Suction speed | 25–30 m/s |
| Volume of suction | 23,000 m³/h |
| Overall dimension | 3300 × 3000 × 2450 mm |
| Net weight | 11,000 kg |
| Sanding roller bearing | NSK |
| Bearing with seat | FSB |
| Main motor | Huali |
| Frequency converter | SHIHLIN |
| Bearing box | Ductile iron |
| Material | High-strength alloy steel. |
