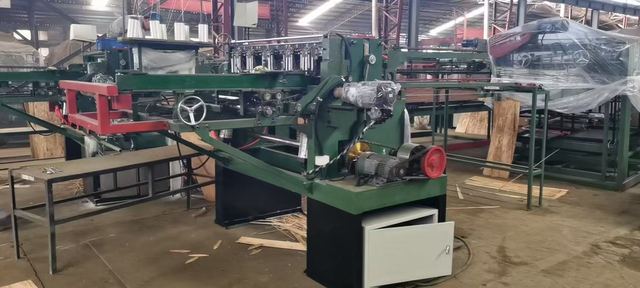

L-Type Plywood Core Composer
Overview
L-Type Plywood Core Composer supplied by Linyi Guoyu Machinery Co.,Ltd. Key published specifications: Core veneer thickness 1.5–4mm; Finger size 30×30mm, 42 fingers per joint; Performance Transfer speed: 0–35 m/min (adjustable); Transfer speed 0–35 m/min (adjustable). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Core veneer thickness | 1.5–4mm |
|---|---|
| Finger size | 30×30mm, 42 fingers per joint |
| Performance | Transfer speed: 0–35 m/min (adjustable) |
| Transfer speed | 0–35 m/min (adjustable) |
| Working efficiency | 300 pcs/h (finished jointed veneer) |
| Components & Dimensions | Transverse jointing section: 4040×2510×1960 mm |
| Drives & Motors | Transverse jointing: 3×3 KW SINEE servo motors |
| Total power | 64.6 KW |
| Control System | PLC: Taiwan TECO |
| Multiple working tables | 4 pcs |
| Weight | 9500 kg |
| High efficiency | Up to 300 finished veneers per hour |
