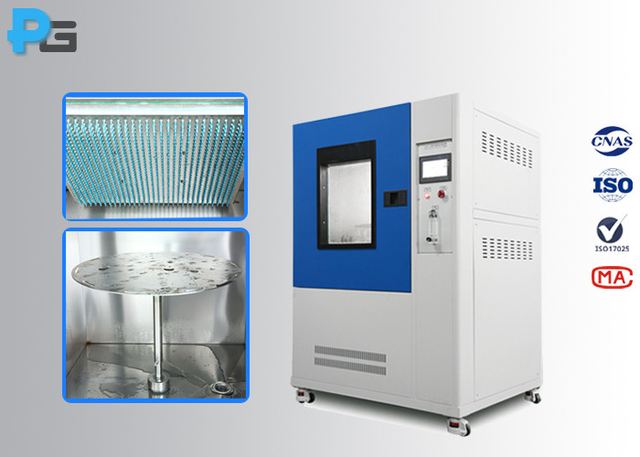

PLC Touch Screen IP Testing Equipment IPX3 IPX4 Water Spray Jet Test Chamber
Model PG-JISD0203
Overview
PLC Touch Screen IP Testing Equipment IPX3 IPX4 Water Spray Jet Test Chamber supplied by Pego Electronics (Yi Chun) Company Limited. Key published specifications: Certification Third-Lab Calibration Certificate; Standard JIS D0203, IEC60529; Test Grade R1, R2, IPX3, IPX4/K; Material SUS304 Stainless Steel. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | Third-Lab Calibration Certificate |
|---|---|
| Standard | JIS D0203, IEC60529 |
| Test Grade | R1, R2, IPX3, IPX4/K |
| Material | SUS304 Stainless Steel |
| Working Power | 220V/50Hz |
| Shippment | By Sea |
| Working Chamber Size | 1000*1000*1000mm (L*D*H) |
| Dimension | 1500*1380*2000mm (L*D*H) |
| Turntable Diameter | ￠400mm |
| Turntable Load Weight | 50KG |
| Lifting height | 450-750 mm |
| Turntable Speed | 1 -20r/min |
| Turntable Angle | 0° or 15° (Horizontal) |
| Test Time | 0-999 min |
| Weight | About 250kg |
| Tube Radius | 400mm |
| Tube Flow | IPX3=1.1L/min; IPX4=1.8L/min IPX4K=15L/min(0-18L/min adjustable) |
| Pressure | IPX3=80Kpa, IPX4=80Kpa; IPX4K=400Kpa (0-500Kpa adjustable) |
| Aperture of drop (mm) | IPX3-4=0.4mm, IPX4K=0.8mm |
| Aperture interval | 50mm |
| Tube inner diameter | 15mm |
| Tube angle | 120º (IPX3), 350º (IPX4) or custom setting |
| Nozzle number | 2pcs |
| Spray water time range | 0～99h59m, settable |
| Tube rotates around the shaft | 1～23r/min, adjustable |
| Nozzle diameter | Φ1.2mm |
