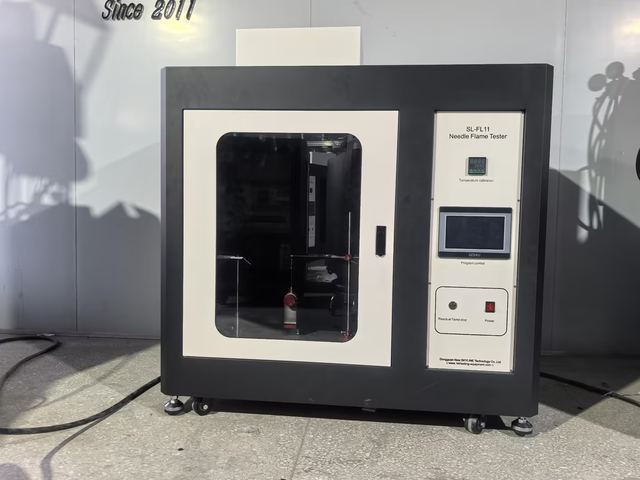

IEC 60695 Needle Flame Test Chamber
Model SL-F11
Overview
IEC 60695 Needle Flame Test Chamber supplied by SKYLINE INSTRUMENTS CO.,LTD. Listed under Test Chambers. Key published specifications: Burner Angle 0~45° (adjustable for flame height); Hold Burning Time 0-999.9s ± 0.1s, automatic recording, manual timeout; Flame Height 12mm ± 1mm (with height measurement instruments); Temperature Test Range 0~1000°C. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Burner Angle | 0~45° (adjustable for flame height) |
|---|---|
| Hold Burning Time | 0-999.9s ± 0.1s, automatic recording, manual timeout |
| Flame Height | 12mm ± 1mm (with height measurement instruments) |
| Temperature Test Range | 0~1000°C |
| Test Process | Automatic control with independent convulsions |
| Chamber | ≥0.5m³ |
| Applicable Standards | GB/T5169.10-2006, IEC60695-11-5:2000, UL746A |
| Power Supply | 800VA, 220V, 48-60Hz |
| Display Panel Language | English (customization available) |
