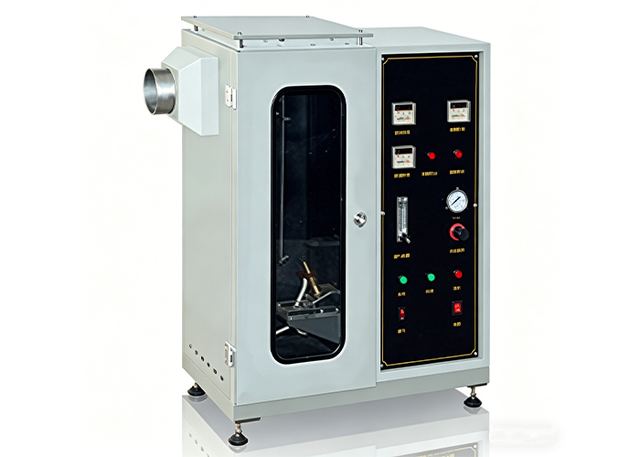

CSA C22.2 No. 149 Clause 6.14 Electric Toy Live Part Enclosure Flammability Test Chamber
Overview
CSA C22.2 No. 149 Clause 6.14 Electric Toy Live Part Enclosure Flammability Test Chamber supplied by Sinuo Testing Equipment Co. , Limited. Key published specifications: Internal Dimensions W305mm × D355mm × H610mm; Tube Inner Diameter 9.5mm; Tube Length 102mm; Ignition Time 0~99.99h/m/s adjustable, accuracy: 0.05s. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Internal Dimensions | W305mm × D355mm × H610mm |
|---|---|
| Tube Inner Diameter | 9.5mm |
| Tube Length | 102mm |
| Ignition Time | 0~99.99h/m/s adjustable, accuracy: 0.05s |
| Ignition Cycles | 0~999 times adjustable |
| Ignition Mode | High-voltage electronic automatic ignition |
| Combustion Mode | Bottom edge ignition |
| Overall Dimensions | H1150mm × W350mm × D450mm |
| Power Supply | AC 220V, 50Hz, 500W |
| Applied Standard | CSA C22.2 No. 149 |
| Installation Angle | 20° From Vertical |
| Flame Height | Vertical Height127mm |
| Total vertical height | 127mm; internal blue cone height: 38mm |
| 0~99.99h/m/s adjustable, accuracy | 0.05s |
| Gas type | Propane |
| Internal blue cone height | 1.5 inches (38mm) |
| Interval between two flame applications | no less than 15 seconds |
