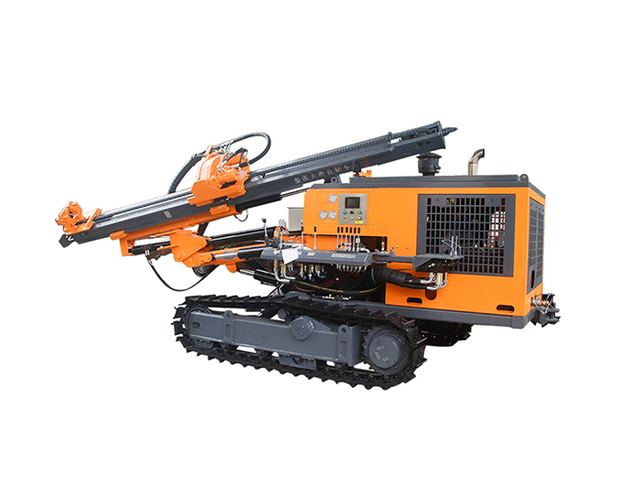

Open pit DTH drilling rigs KG430/KG430H
Overview
Open pit DTH drilling rigs KG430/KG430H, listed by D Miningwell in Quzhou, Zhejiang. Drill truck model KG430/KG430H, rotary torque 3000N•m and drilling hardness f=8~12 are among the specifications published.
Technical specifications
| Drill truck model | KG430/KG430H |
|---|---|
| Rotary torque | 3000N•m |
| Drilling hardness | f=8~12 |
| Rotation speed | 90Rpm |
| Drilling range | Φ90~127mm |
| Travel speed | 0~2.5Km/h |
| Economic drilling depth | 25m |
| Weight (without dust collection) | 5400Kg |
| Ground clearance | 500mm |
| Air consumption | 13～21m3/min |
| Compensation length of the carriage | 900mm |
| Matching power | 玉柴4DKC4G2-80 |
| Power Parameter | 58KW/2200r/min |
| Overall dimensions (without dust collection) | 5700×2150×2700mm |
| Lifting force | 40KN |
| High level hole height | 2850mm |
| Push stroke | 3175mm |
| Low level hole height | 350mm |
| Drilling Hole Diameter | Φ90~127mm |
