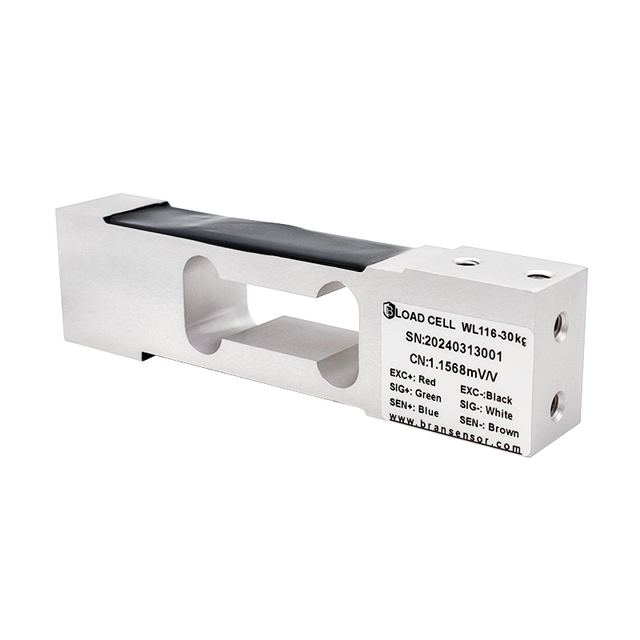

Multi-Capacity Single Point Load Cell 5kg To 200kg With Parallel Use IP68 (WL-116)
Model WL-116
Overview
Multi-Capacity Single Point Load Cell 5kg To 200kg With Parallel Use IP68 (WL-116) supplied by OK Brans Measuring And Controlling Technology Co., Ltd. Key published specifications: Capacity Range 5kg/10kg/20kg/30kg/50kg/100kg/200kg; Recommended Excitation 5~15VDC; Material Aluminum Alloy; Rated Output 2.0±0.05mV/V. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Capacity Range | 5kg/10kg/20kg/30kg/50kg/100kg/200kg |
|---|---|
| Recommended Excitation | 5~15VDC |
| Material | Aluminum Alloy |
| Rated Output | 2.0±0.05mV/V |
| Combined Error | 0.01% F.S. |
| IP Class | IP68 (customizable) |
| Cable Length | Φ5.4×4000mm (customizable) |
| Safe Overload | 150%F.S. |
| Operation Temp | -30~70°C |
| Zero Balance | ±0.02%mV/V |
| Capacity | 5kg/10kg/ 20kg/ 30kg/ 50kg/ 100kg/200kg |
| Accuracy class | C3/C4 |
| Non-linearity | ±0.017%F.S. |
| Hysteresis | ±0.017%F.S. |
| Repeatability | ±0.01%F.S. |
| Creep (30min) | ±0.017%F.S. |
| Temperature effect on sensitivity | ±0.017%F.S./10℃ |
| Temperature effect on zero | ±0.02%F.S./10℃ |
| Insulation resistance | ≥5000MΩ/100VDC |
| Ultimate overload | 300%F.S. |
| Cable size | Φ5.2×4000mm (Customizable) |
| Max.platform size | 600mm×500mm |
| Certification | CNAS |
