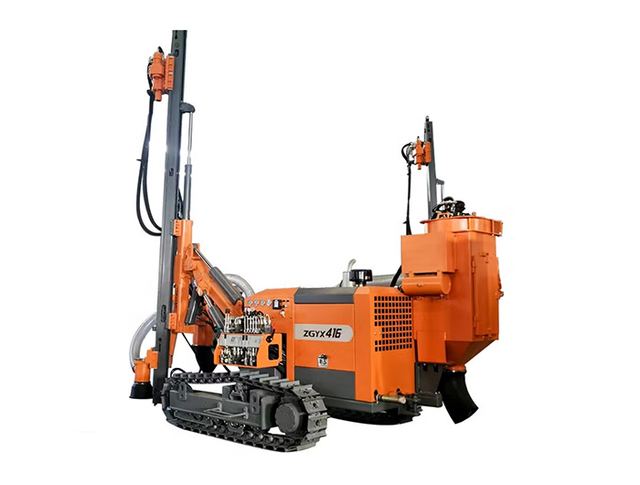

Mining Surface DTH Drilling Rig ZGYX-416
Overview
Mining Surface DTH Drilling Rig ZGYX-416 supplied by D Miningwell. Key published specifications: Weight 4500kg; Engine Model 玉柴YC4DK80; Engine rated power 58KW; Drill pipe type Φ60*3000mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Weight | 4500kg |
|---|---|
| Engine Model | 玉柴YC4DK80 |
| Engine rated power | 58KW |
| Drill pipe type | Φ60*3000mm |
| The hole dilameter | Φ90-127mm |
| Torque (max) | 1950N.m |
| Swing speed(rpm) | 0-150r/min |
| Feed force | 15kN |
| Rig lifting force | 25KN |
| Mode of advancement | Cylinder Chain |
| Walking speed(km/h) | 2.5km/h |
| Transport dimension | 4900*2000*2200mm |
| Drilling Hole Diameter | Φ90 ‒ 127 mm |
