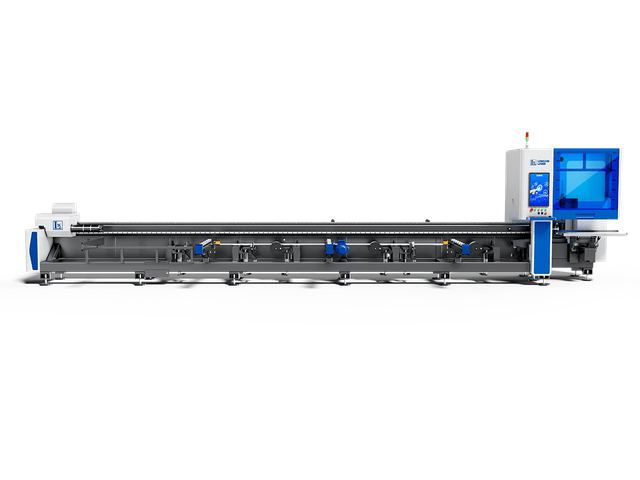

Medium Tube Bevel Laser Cutting Machine
Model LX-T12-6
Overview
Medium Tube Bevel Laser Cutting Machine, listed under Laser Tube Cutting by Longxin Laser Co., Ltd in Foshan, Guangdong. Published figures include matching laser range 1500-3000W, cutting pipe diameter range ∅20-120mm / □15*15-120*120mm and laser power 1500W-3000W.
Technical specifications
| Matching laser range | 1500-3000W |
|---|---|
| Cutting pipe diameter range | ∅20-120mm / □15*15-120*120mm |
| Single tube load | 80kg, repeatability: 0.05 mm, maximum speed: <100 r/min |
| Laser power | 1500W-3000W |
| Cutting Diameter Of Round Tube | Φ20-120mm |
| Cutting Diameter Of Square Tube | ▢20*20-120*120mm |
| Cutting Tube length | ≤7100mm |
| Accuracy Of Processing | ±0.05mm |
| Dimensions | 9350*1820*2150mm |
| Weight | ≈2.7 tons |
| Cutting Tube Type | Round Tube / Square Tube |
| Cutting Material | stainless steel, carbon steel, aluminum,copper,iron |
