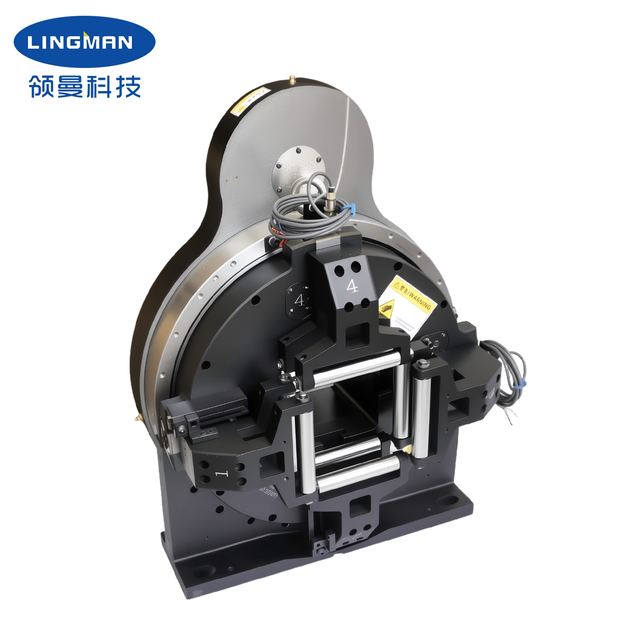

120mm 130mm Hollow Size Full Stroke Pneumatic Laser Chuck for Laser Tube Cutting Equipment
Model F130DF
Overview
120mm 130mm Hollow Size Full Stroke Pneumatic Laser Chuck for Laser Tube Cutting Equipment supplied by Lingman Machinery Technology (Changzhou) Co., Ltd. Listed under Chucks. Key published specifications: Jaw stroke 124mm; Maximunm clamping force 0.6KN; Allowable pressure 0.4-0.9MPa; Maximum rotation diameter 440mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Jaw stroke | 124mm |
|---|---|
| Maximunm clamping force | 0.6KN |
| Allowable pressure | 0.4-0.9MPa |
| Maximum rotation diameter | 440mm |
| Clamping range | 6-130mm |
| Central height | 235mm |
| Rotational inertia | 1.42kg.m2 |
| Rotating part weight | 71kg |
| Whole unit weight | 134kg |
