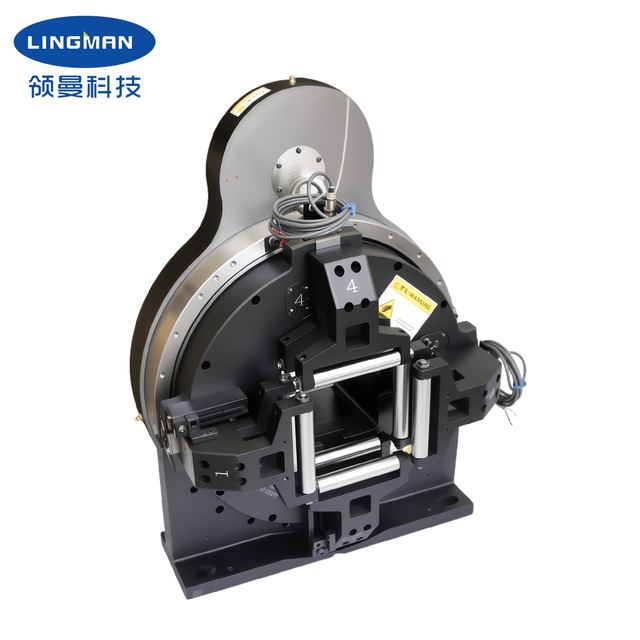

LINGMAN 130mm Pneumatic Laser Chuck for Tube Cutting Machines
Model F130DF
Overview
Lingman Machinery Technology (Changzhou) Co., Ltd in Changzhou, Jiangsu lists LINGMAN 130mm Pneumatic Laser Chuck for Tube Cutting Machines under Laser Tube Cutting. Published figures include jaw stroke 124mm, maximunm clamping force 0.6KN and allowable pressure 0.4-0.9MPa.
Technical specifications
| Jaw stroke | 124mm |
|---|---|
| Maximunm clamping force | 0.6KN |
| Allowable pressure | 0.4-0.9MPa |
| Maximum rotation diameter | 440mm |
| Clamping range | 6-130mm |
| Central height | 235mm |
| Rotational inertia | 1.42kg.m2 |
| Rotating part weight | 71kg |
| Whole unit weight | 134kg |
