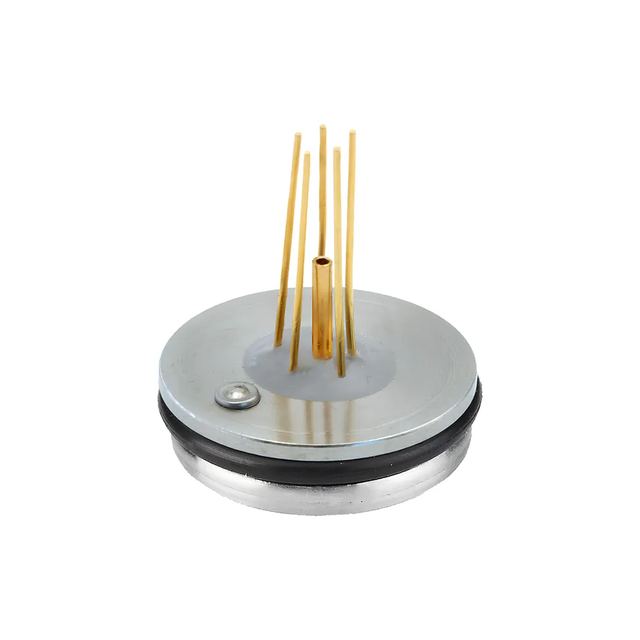

Media Isolated Pressure Sensor SS103
Overview
Media Isolated Pressure Sensor SS103 supplied by SENDO SENSOR. Key published specifications: Accuracy 0.5% F.S. @ 25 °C (typical); Overload 2.0 × F.S.; Operating temperature -20 to 100 °C; Storage temperature -40 to 125 °C. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Accuracy | 0.5% F.S. @ 25 °C (typical) |
|---|---|
| Overload | 2.0 × F.S. |
| Operating temperature | -20 to 100 °C |
| Storage temperature | -40 to 125 °C |
| Bridge resistance | 2.3 to 4 KΩ |
| Insulation | 100MΩ/250VDC |
| Vibration | 20g/(20 to 5000Hz) |
| Endurance | > 100 × 106 F.S. cycles |
| Stability | ≤ 0.2% F.S./Year |
| Housing | Stainless steel 304 |
| Filling liquid | Silicone oil |
| Electrical connection | Kovar pins |
| Diameter | 19 mm |
| Height | 5.0 mm |
| Weight | 9 g |
| Without temperature compensation | on-board temperature compensation |
