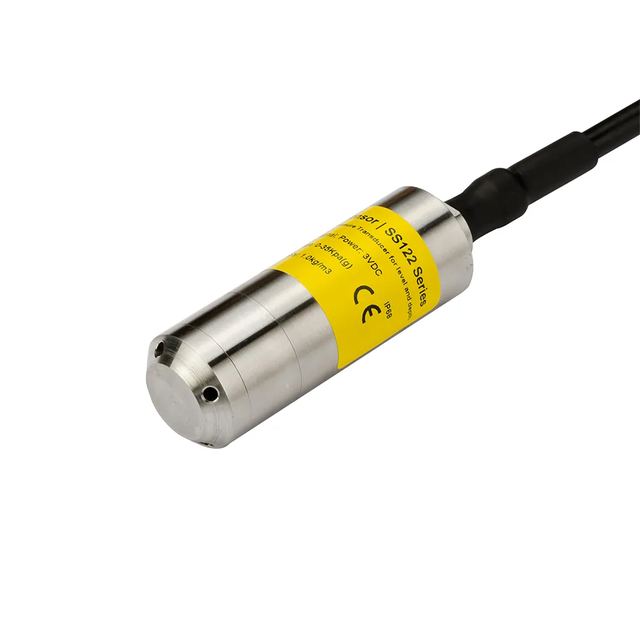

Hydrostatic Pressure Transducer SS122
Overview
Hydrostatic Pressure Transducer SS122 supplied by SENDO SENSOR. Key published specifications: Zero output 0 ± 2 mV; Span output 100 ± 20 mV (typical); Accuracy 0.25% F.S. (typical); Overload 2.0 × F.S.. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Zero output | 0 ± 2 mV |
|---|---|
| Span output | 100 ± 20 mV (typical) |
| Accuracy | 0.25% F.S. (typical) |
| Overload | 2.0 × F.S. |
| Temperature compensation | 0 to 60 °C |
| Operating temperature | -20 to 85 °C |
| Storage temperature | -40 to 125 °C |
| Zero thermal error | ≤ 0.02% F.S./°C |
| Bridge resistance | 2.3 to 4 KΩ |
| Insulation | 100MΩ/250VDC |
| Stability | ≤ 0.2% F.S./Year |
| Red | Supply + |
| PIN2: Output – | PIN2: Output + |
| Black | Supply – |
| White | Output + |
| Blue | Output – |
| PIN5: Output + | PIN5: Output – |
| Various power excitation | 1.5 mA, 5 V dc, 10V dc |
