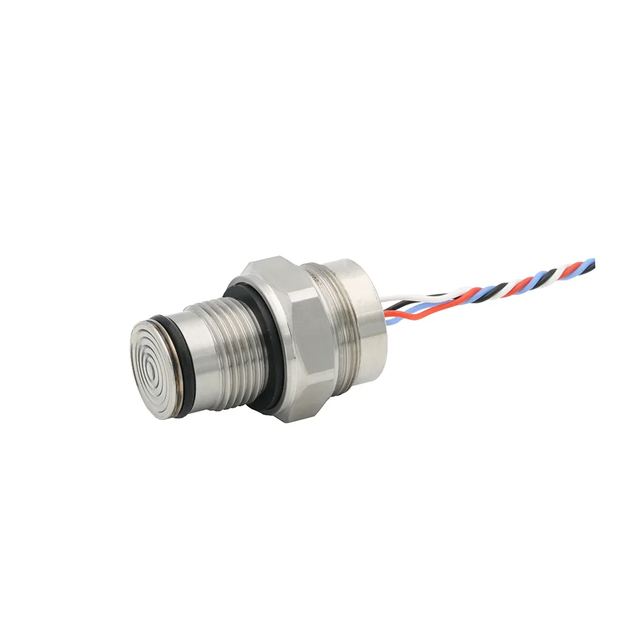

Front Flush Mount Pressure Transducer SS116
Overview
Front Flush Mount Pressure Transducer SS116 supplied by SENDO SENSOR. Key published specifications: Zero output 0 ± 2 mV; Span output 100 ± 20 mV (typical); Accuracy 0.25% F.S. (typical); Overload 2.0 × F.S. (< 250 bar). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Zero output | 0 ± 2 mV |
|---|---|
| Span output | 100 ± 20 mV (typical) |
| Accuracy | 0.25% F.S. (typical) |
| Overload | 2.0 × F.S. (< 250 bar) |
| Temperature compensation | 0 to 70 °C |
| Operating temperature | -20 to 100 °C |
| Storage temperature | -40 to 125 °C |
| Zero thermal error | ≤ 0.02% F.S./°C |
| Sensitivity thermal error | ≤ 0.02% F.S./°C |
| Bridge resistance | 2.3 to 4 KΩ |
| Insulation | 100MΩ/250VDC |
| Vibration | 20g/(20 to 5000Hz) |
| Endurance | > 100 × 106 F.S. cycles |
| Stability | ≤ 0.2% F.S./Year |
