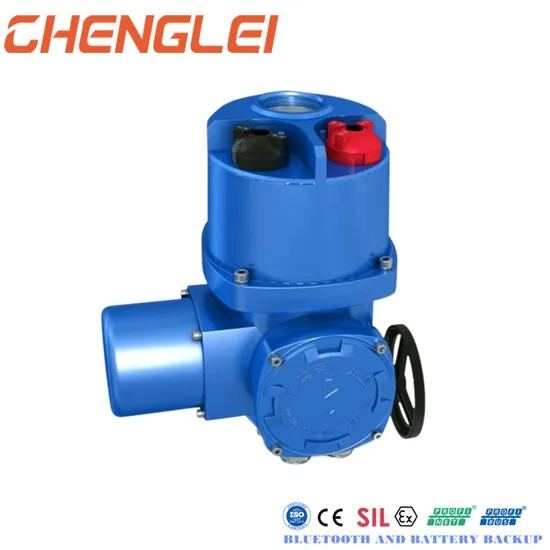

Low Temperature -60ºC Quarter Turn Electric Valve Actuator with ISO5210 Thrust Flange and JB2920 Torque Type
Overview
Low Temperature -60ºC Quarter Turn Electric Valve Actuator with ISO5210 Thrust Flange and JB2920 Torque Type supplied by Changzhou Chenglei Valve Technology Co., Ltd. Listed under Valve Actuators. Key published specifications: Temperature Range -60~+70 ºC; Connection Type Flange; Material Aluminum Alloy; Motor Type Electric Motor. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Temperature Range | -60~+70 ºC |
|---|---|
| Connection Type | Flange |
| Material | Aluminum Alloy |
| Motor Type | Electric Motor |
| Voltage | 380V/110V/220V/440V/660V AC Or 12V/24V DC |
| Rated Frequency | 50HZ/60HZ |
| Speed | 9r/min,18r/min,24r/min,36r/min/48r/min |
| Control Method | On-off Or Modulating.4-20mA |
| Motor Duty | S2 10min,15min,30min Or S1/S3/S4/S6 24%,40% |
| Protection Grade | IP65/IP67/IP68 |
| Insulation Level | F Level |
| Environmental Temperature | -20~+60 ºC (special Orders -60~+70 ºC) |
| Relative Humidity | ≤ 95% (at+25 ºC) |
| Speed options | 9r/min, 18r/min, 24r/min, 36r/min, 48r/min |
| Control methods | On-off or modulating (4-20mA) |
| Certifications | CCC/UL/CE/IECex/SIL/RoHS/ISO/CE/Gost |
| Environmental temperature range | -20 to +60ºC (special orders -60 to +70ºC) |
| Anti-corrosion coating | electrostatic powder spraying |
