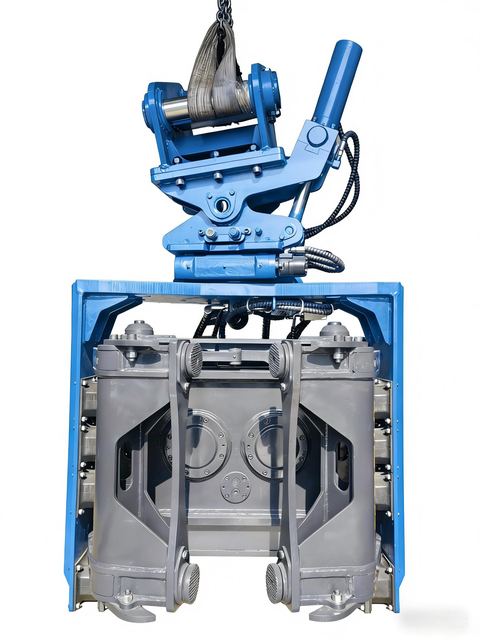

Low Headroom Pile Driver
Overview
Low Headroom Pile Driver, listed under Pile Drivers by Shanghai Yekun Construction Machinery Co., Ltd in Shanghai. Eccentric moment 6.6 kgm, centrifugal force 656 kN and frequency range 2300 – 5000 rpm are among the specifications published.
Technical specifications
| Eccentric moment | 6.6 kgm |
|---|---|
| Centrifugal force | 656 kN |
| Frequency range | 2300 – 5000 rpm |
| Side clamp force | 465 kN |
| Bottom clamp force | 520 kN |
| Operating pressure | 32 MPa |
| Flow requirement (merged) | 280 – 360 L/min |
| Rotation / tilt angle | 360° continuous / ±30° |
| Dimensions (L×W×H) | 1400×1315×3056 mm |
| Weight (incl. connector & clamp) | 3870 kg |
| Suitable excavator | 32 – 40 tons |
| Min. headroom (bottom clamp) | 3.8 m |
