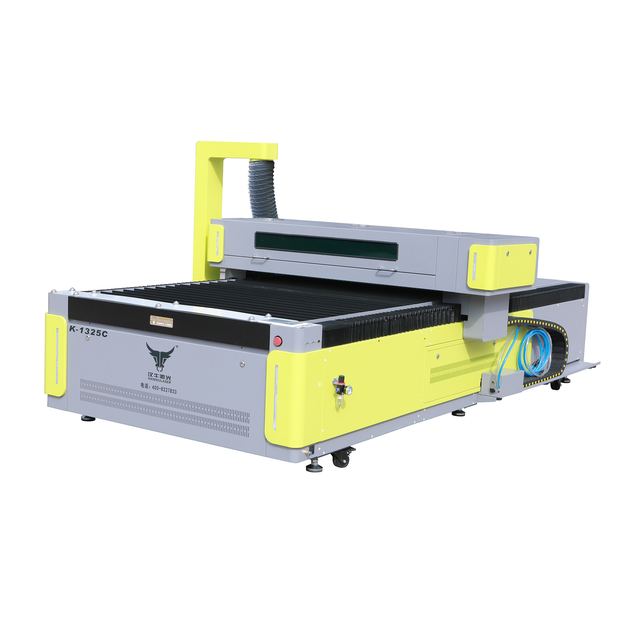

Laser Cutting Machine 8*4 Feet Work Area for PVC Acrylic Wood Bamboo Good Quality
Model K1325
Overview
Laser Cutting Machine 8*4 Feet Work Area for PVC Acrylic Wood Bamboo Good Quality supplied by Guangzhou Hanniu laser equipment Co., Ltd. Key published specifications: Model K1325 laser cutting machine; Engraving Area 1300×2500mm; Engraving Speed 0-64000mm/min; Laser power 500w. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Model | K1325 laser cutting machine |
|---|---|
| Engraving Area | 1300×2500mm |
| Engraving Speed | 0-64000mm/min |
| Laser power | 500w |
| Natural life of laser | 10000hours |
| Laser wave length | 10.6um |
| Resolution ratio | 0.025mm |
| Minimum shaping character | Chinese character 2mm/ letter 1mm |
| Resetting positioning accuracy | ±0.01mm |
| Power Supply | Ac220v±10%,50HZ |
| Gross Power | 2600w |
| Graphic Format Supported | BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DWG,DXF |
| Driver Type | Servo Motor |
| Opearate System | Win98/Win2000/WinXP |
| Max Cutting thickness | 10-30mm(acrylic) |
| Net Weight | 980gs |
| Dimension | 2800×2000×2200mm |
| Acrylic Cutting Thickness | Up To 30mm |
| Positioning Precision | ±0.001mm |
| Cooling | Water Colling |
| Cooling Method | Water Cooling |
| Operating Temperature | 0 - 45°C |
