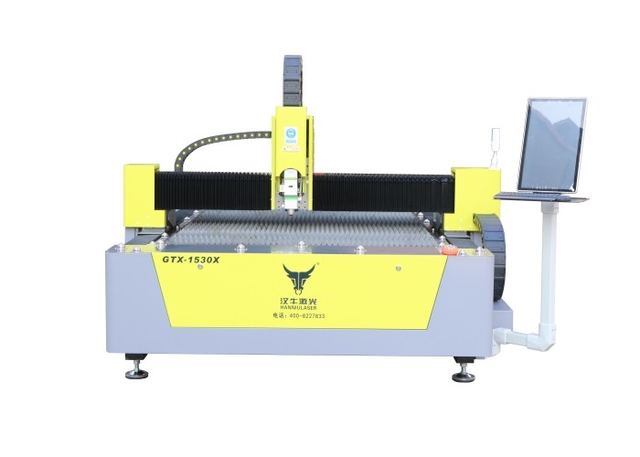

Fiber Metal Laser Cutting Machine 3015 1000W 1500W 2000W 3000W
Model GTX1530
Overview
Guangzhou Hanniu laser equipment Co., Ltd in Guangzhou, Guangdong lists Fiber Metal Laser Cutting Machine 3015 1000W 1500W 2000W 3000W. Machine mode GTX-1530, working area 1500*3000mm and laser working medium Fiber laser are among the specifications published.
Technical specifications
| Machine mode | GTX-1530 |
|---|---|
| Working area | 1500*3000mm |
| Laser working medium | Fiber laser |
| Laser wavelength | 1070nm |
| Working speed | 15m/min |
| Laser power | 1000W/1500W/2000W/3000W |
| Minimum line width | 0.10mm |
| Resetting positioning accuracy | ±0.01mm |
| Control system | Hanniu laser/Cyptube |
| Power supply | AV380V±5%, 60HZ±1% |
| Gross power | 5KW |
| Cooling method | Water cooling |
| Dimension | 2450*4170*1650mm |
| Net weight | 4500kg |
| Cooling System | Water Cooling |
| Cutting Speed | Up To 100m/min |
| Position Accuracy | 0.03mm |
