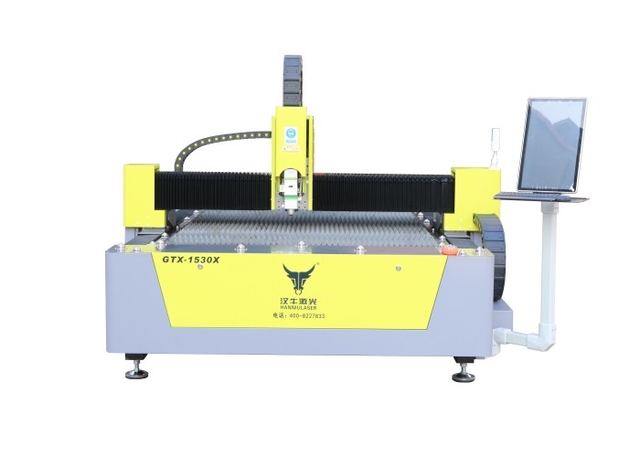

1500w Fiber Laser Cutting Machine Max Reci Laser Sauce For Metal SS CS
Model GTX1530
Overview
1500w Fiber Laser Cutting Machine Max Reci Laser Sauce For Metal SS CS supplied by Guangzhou Hanniu laser equipment Co., Ltd. Key published specifications: Machine mode GTX-1530; Working area 1500*3000mm; Laser working medium Fiber laser; Laser wavelength 1070nm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Machine mode | GTX-1530 |
|---|---|
| Working area | 1500*3000mm |
| Laser working medium | Fiber laser |
| Laser wavelength | 1070nm |
| Working speed | 15m/min |
| Laser power | 1000W |
| Minimum line width | 0.10mm |
| Resetting positioning accuracy | ±0.01mm |
| Control system | Hanniu laser/Cyptube |
| Power supply | AV380V±5%, 60HZ±1% |
| Gross power | 5KW |
| Cooling method | Water cooling |
| Dimension | 2450*4170*1650mm |
| Net weight | 4000kg |
| Control Software | CYPCUT |
| Working Mode | Continuous/modulation |
| Position Accuracy | 0.03mm |
