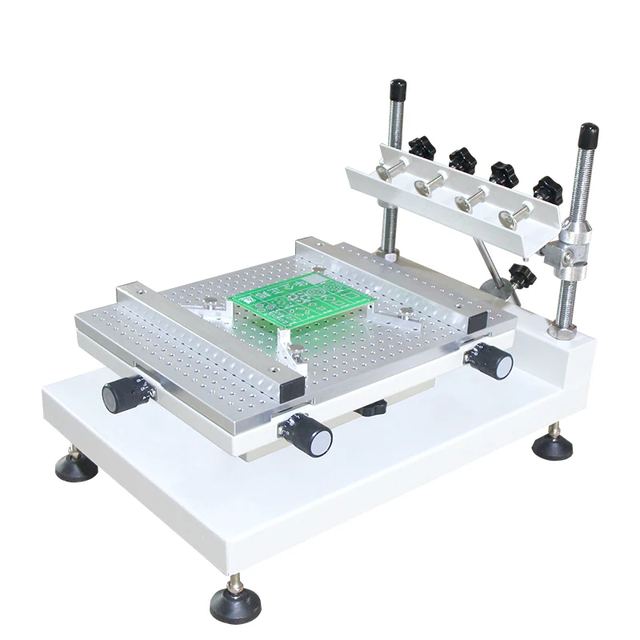

iTECH PTR-A300 High Precision Solder Paste Printer for PCB Line
Model PTR-A300
Overview
iTECH PTR-A300 High Precision Solder Paste Printer for PCB Line, from Zhejiang Huaqi Zhengbang Automation Technology Co., Ltd in Wenzhou, Zhejiang. The listing gives size PTR-A300(300*400mm), max. printing size 250*400mm and work table size 300*400mm.
Technical specifications
| Size | PTR-A300(300*400mm) |
|---|---|
| Max. Printing size | 250*400mm |
| Work table size | 300*400mm |
| Max. net frame size | 370*470mm |
| Thickness of the substrates | 0-80mm |
| The workbench adjust volume | 10mm, Horizontal and vertical adjustment |
| Printing platform height | 220mm |
| Repeated accuracy | ±0.01mm |
| Net Weight | 21kgs |
| Gross Weight | 22kgs |
| Machine Size | 540*370*380mm |
