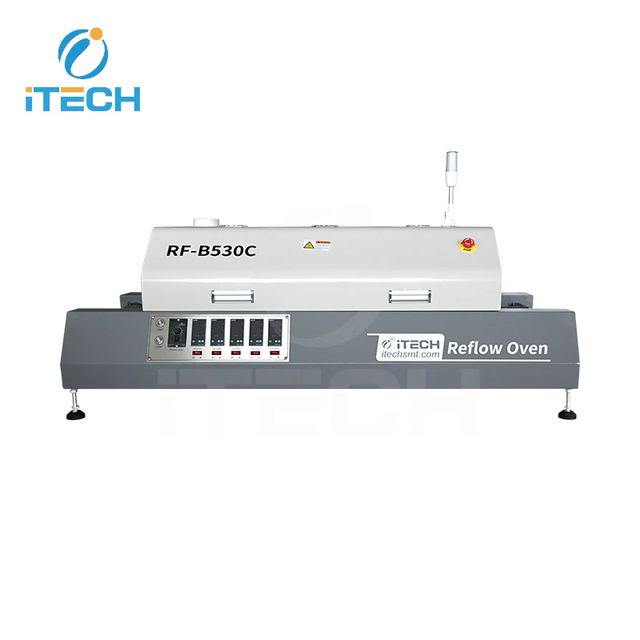

iTECH RF-B530C 5 Zones Hot Air Convection SMT Reflow Oven
Model RF-B530C
Overview
iTECH RF-B530C 5 Zones Hot Air Convection SMT Reflow Oven supplied by Zhejiang Huaqi Zhengbang Automation Technology Co., Ltd. Key published specifications: Heating Method Hot air; Cooling Zone 2 Natural Air Cooling; Heat Tunnel length 960mm; Mesh Width 300mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Heating Method | Hot air |
|---|---|
| Cooling Zone | 2 Natural Air Cooling |
| Heat Tunnel length | 960mm |
| Mesh Width | 300mm |
| PCB Width Allowance | Max. 280mm |
| PCB Height Allowance | ≤20mm (Customize Acceptable) |
| Mesh Height | 300±20mm |
| Conveyor Speed | 0-1350mm/min |
| Temperature Range | 0°C-400°C |
| Voltage | AC 220V/AC 380V, 50Hz |
| Starting Power | 7KW |
| Working Power | 2.5KW |
| Net Weight | 150kgs |
| Gross Weight | 210kgs |
| Machine Size | L1700×W710×H660mm |
