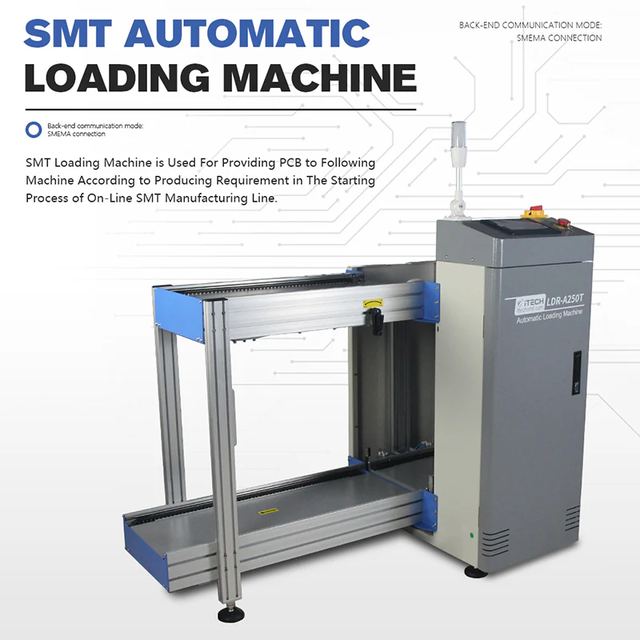

iTECH LDR-A250T Automatic PCB Loader Machine
Model LDR-A250T
Overview
iTECH LDR-A250T Automatic PCB Loader Machine supplied by Zhejiang Huaqi Zhengbang Automation Technology Co., Ltd. Key published specifications: PCB Size Max. 350*250mm; Rack Size L355*W320*H565mm; Conveyor Height 900±20mm; Conveyor Speed 0.16m/s. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| PCB Size | Max. 350*250mm |
|---|---|
| Rack Size | L355*W320*H565mm |
| Conveyor Height | 900±20mm |
| Conveyor Speed | 0.16m/s |
| Voltage | AC 220V, 50Hz |
| Power | 200W |
| Air Pressure | 0.6Mpa |
| Net Weight | 150kgs |
| Gross Weight | 212kgs |
| Machine Size | L1340×W790×H1200mm |
