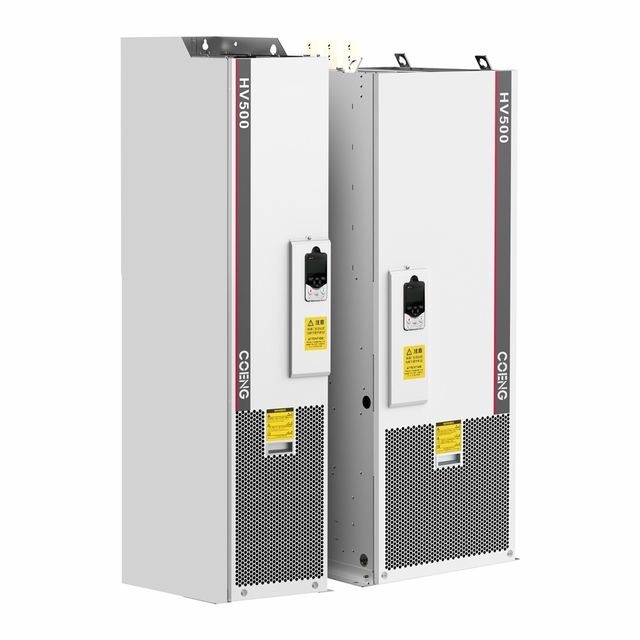

Humidity and Vibration Tolerant VFD (15%~95% Humidity, 3M3 Vibration) for Harsh Conditions
Model HV500
Overview
Humidity and Vibration Tolerant VFD (15%~95% Humidity, 3M3 Vibration) for Harsh Conditions supplied by SENDEN TECH LIMITED. Key published specifications: Certification EC; Document HV500.xlsx; Protection Grade IP20; Cooling Way Forced Air Cooling. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | EC |
|---|---|
| Document | HV500.xlsx |
| Protection Grade | IP20 |
| Cooling Way | Forced Air Cooling |
| Efficiency | 5.5kW~22kW: ≥93%; Above 30kW: ≥95% |
| Input Frequency | 50Hz/60Hz±5% |
| Output Voltage | 0V~Input Voltage |
| Output Uout | 0V~Input Uin |
| Output Frequency | 0Hz~500Hz |
| Range of Speed Regulation | 1:10 V/F, 1:100 OLVC, 1:1000 CLVC |
| Torque Precision | ≤5%, Vector Control |
| Torque Pulsation | ≤5%, Vector Control |
| Speed Regulation Precision | OLVC 0.2%, CLVC 0.01% |
| Torque Response | ﹤5ms, Vector Control |
| Dynamic Speed Reduction | OLVC＜0.5%*s, CLVC＜0.3%*s |
| Acceleration and Deceleration Time | 0.0s~3200.0s, 0.0min~3200.0min |
| Input Frequency Accuracy | Digital: 0.01Hz, Analog: 0.01Hz |
| Multiple Speed-Steps Operation | 16-Speed Steps Operation through control terminals |
| Enhencement Function | Free Function Block |
| Analog Input Terminals | AI1: 0V~10V/-10V~10V, AI2: 0V~10V/0(4) mA~20mA |
| Anolog Output Terminals | 2 Strings 0V~10V/0 (4) mA~20mA |
| Motor Temperature Detection | Support PT100/PT1000/KTY84 |
| STO Interface | SIL3/PLe Safe torque shutdown function |
| Operation Temperature | -25℃~+40℃ (40℃~55℃ Derating) |
| Humidity | 15%~95%, Without Condensation |
| Vibration | 3M3, IEC60721-3-3 |
| Installation Method | Cabinet |
