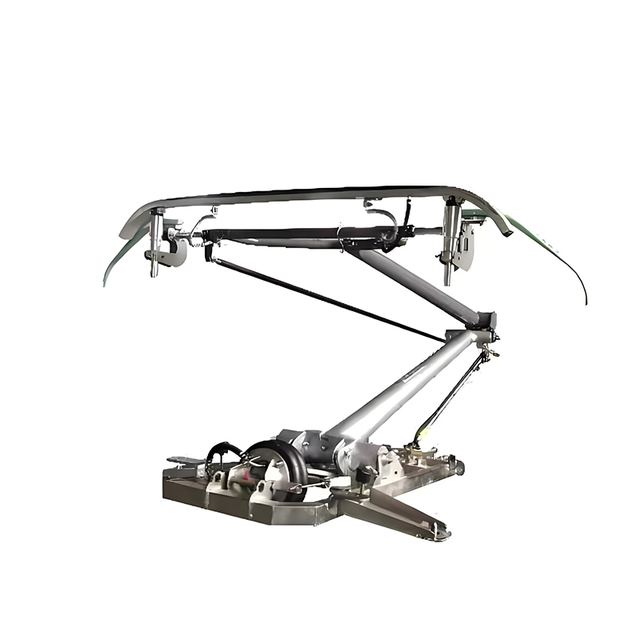

HTR420 Train Locomotive Pantograph
Overview
HTR420 Train Locomotive Pantograph supplied by Chongqing Hengtairail Equipment Co.,Ltd. Listed under Other Railway Products. Key published specifications: Design Speed 400 Km/h; Rated Voltage/Current AC 25kV / 1000A; Nominal Static Contact Force 80 N (adjustable); Dynamic Contact Force Adjustment Active Control Skid Plate. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Design Speed | 400 Km/h |
|---|---|
| Rated Voltage/Current | AC 25kV / 1000A |
| Nominal Static Contact Force | 80 N (adjustable) |
| Dynamic Contact Force Adjustment | Active Control Skid Plate |
| Drive Method | Pneumatic |
| Lowering Retention Force | ≥150 N |
| Lowered Height | ≤745 Mm |
| Minimum Operating Height | >1000 Mm |
| Maximum Operating Height | <2950 Mm |
| Maximum Lifting Height | ≥3100 Mm |
| Weight | ≤135 kg |
