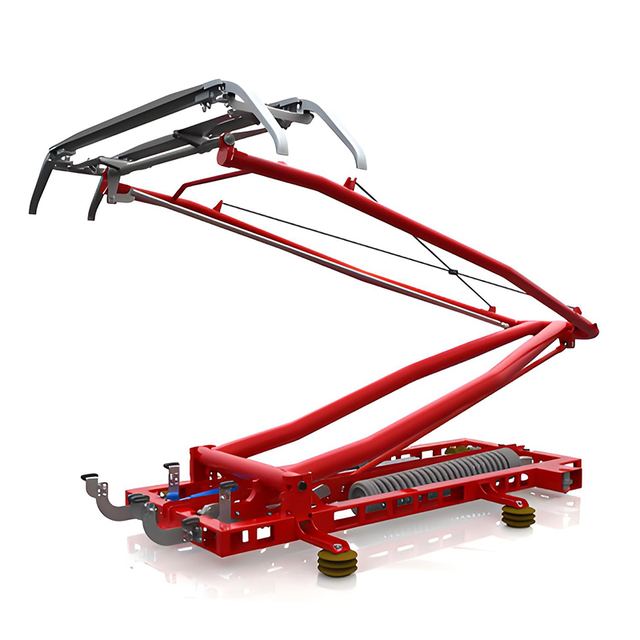

HTR300 Train Locomotive Pantograph
Overview
Chongqing Hengtairail Equipment Co.,Ltd in Chongqing lists HTR300 Train Locomotive Pantograph under Pantographs. Published figures include design speed 300 Km/h, power transmission (standard) 25 KV / 1000 A and static contact force 70 N, Adjustable.
Technical specifications
| Design Speed | 300 Km/h |
|---|---|
| Power Transmission (Standard) | 25 KV / 1000 A |
| Static Contact Force | 70 N, Adjustable |
| Dynamic Contact Force Adjustment | Aerodynamic Fins (if Required) |
| Raising Mechanism | Pneumatic |
| Input Compressed Air Pressure | 4–10 Bar |
| Free Vertical Movement of Pantograph Head | 60 mm (vertical displacement) |
| Weight | 105 kg (excluding insulators) |
