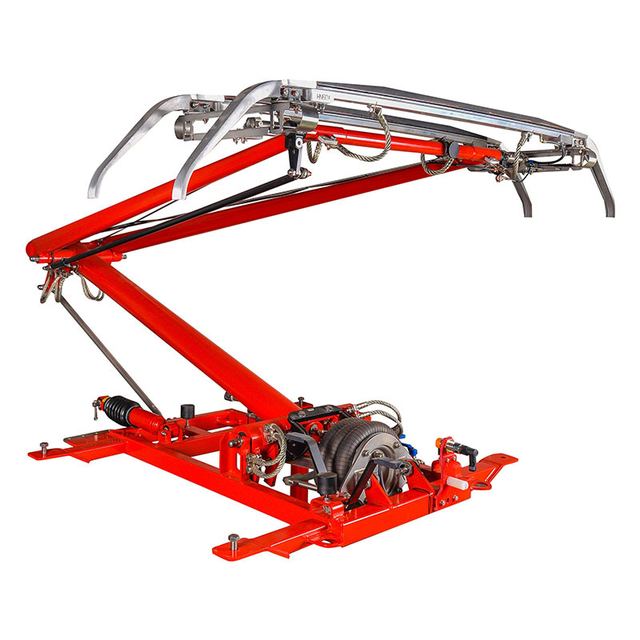

HTR160C Train Locomotive Pantograph
Overview
HTR160C Train Locomotive Pantograph supplied by Chongqing Hengtairail Equipment Co.,Ltd. Listed under Other Railway Products. Key published specifications: Ambient Temperature -25°C ~ +70°C; Storage Temperature -40°C ~ +70°C; Design Speed 120 Km/h; Rated Pneumatic Pressure 400 KPa. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Ambient Temperature | -25°C ~ +70°C |
|---|---|
| Storage Temperature | -40°C ~ +70°C |
| Design Speed | 120 Km/h |
| Rated Pneumatic Pressure | 400 KPa |
| Protection Grade | IP00 |
| Rated Voltage | 1500 VDC |
| Rated Operating Current | 1700 A |
| Maximum Current | 2400 A |
| Maximum Parking Current | 460 A |
| Static Contact Force | 120 ± 10 N |
| Raising Time | ≤ 8 S |
| Electrical Insulation Distance | 280 ± 5 Mm |
