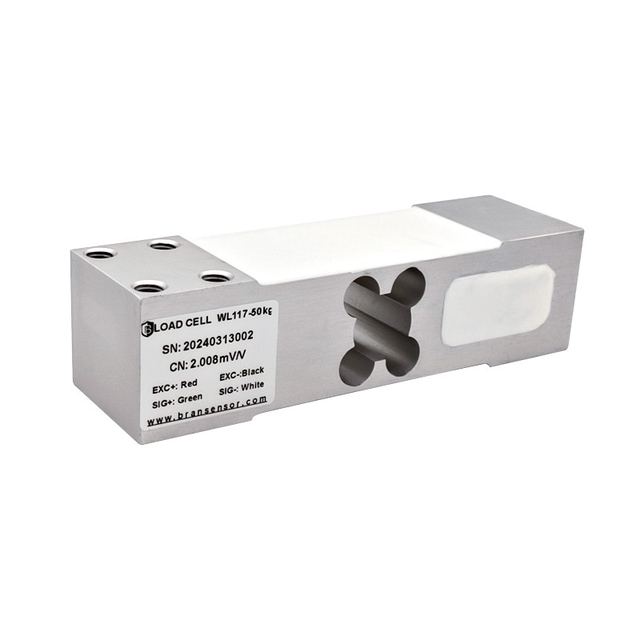

High Capacity Single Point Load Cell 50-500kg Aluminum Alloy C3/C4 Optional (WL-117)
Model WL-117
Overview
High Capacity Single Point Load Cell 50-500kg Aluminum Alloy C3/C4 Optional (WL-117) supplied by OK Brans Measuring And Controlling Technology Co., Ltd. Key published specifications: Material Aluminum Alloy; Capacity 50/100/150/200/250/300/400/500 Kg; Combined Error 0.015% F.S.; Protection IP65 (customizable). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Material | Aluminum Alloy |
|---|---|
| Capacity | 50/100/150/200/250/300/400/500 Kg |
| Combined Error | 0.015% F.S. |
| Protection | IP65 (customizable) |
| Parallel Use | Good Output Consistency |
| Cable Size | Φ5×3000mm (customizable) |
| Safe Overload | 150%F.S. |
| Rated Output | 2.0±0.05mV/V |
| Weight Approx | 0.6kg |
| Accuracy class | C3 |
| Zero balance | ±0.02mV/V |
| Non-linearity | ±0.02%F.S. |
| Hysteresis | ±0.017%F.S. |
| Repeatability | ±0.015%F.S. |
| Temperature effect on sensitivity | ±0.008%F.S./10℃ |
| Temperature effect on zero | ±0.0125%F.S./10℃ |
| Insulation resistance | ≥5000MΩ/100VDC |
| Recommended excitation | 5-15VDC |
| Ultimate overload | 200%F.S. |
| IP class | IP65 (Customizable) |
| Nominal displacement | 0.6-0.9mm |
| Certification | CNAS |
