Overview

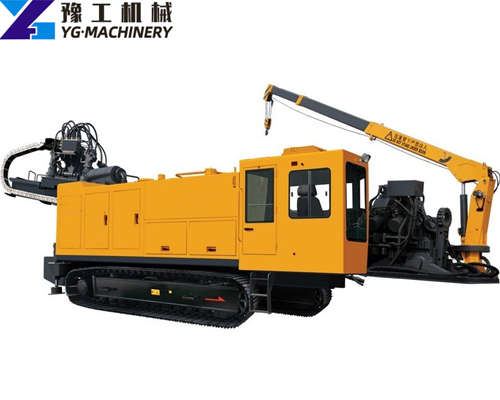

HDD Machine supplied by YG Drill Equipment. Listed under Drilling Rigs. Key published specifications: Rig Weight 10500kg; Max.Push & Pull Force 350/700kN; Max. Torque 12600N·m; Max.Push & Pull Speed 40m/min. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Rig Weight	10500kg
Max.Push & Pull Force	350/700kN
Max. Torque	12600N·m
Max.Push & Pull Speed	40m/min
Max.Rotation Speed	140r/min
Engine Power	154kW
Max.Mud Pump Flow	320L/min
Caterpillar Walking Speed	3.5-6.0(km/h)
Max.Mud Pump Pressure	8MPa
Max.Aperture Diameter	Ф1100mm
MAx.Crossing Length	400m
