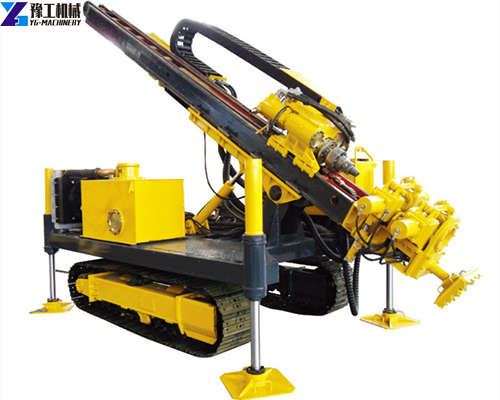

Anchor Drilling Rig
Overview
Anchor Drilling Rig supplied by YG Drill Equipment. Listed under Drilling Rigs. Key published specifications: Product Model HR-300X; Input power (motor) 22+15(KW); System pressure 25MPA; Oil pump displacement 40/MIN. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Product Model | HR-300X |
|---|---|
| Input power (motor) | 22+15(KW) |
| System pressure | 25MPA |
| Oil pump displacement | 40/MIN |
| Power supply | 380/50HZ |
| Hydraulic oil | Winter：YB-N32 Summer:YB-N46 |
| Fuel tank capacity | 120L |
| Size(L*W*H) | 3100x2300x2500(mm) |
| Drilling depth | 30-50（m） |
| Rotator output speed | 150 (r/min) |
| Rotor output torque | 4800(N.m) |
| Rotator stroke | 1800(mm) |
| Way of walking | Crawler walking |
| Walking speed | 3(km/h) |
| weight | 3600(kg) |
