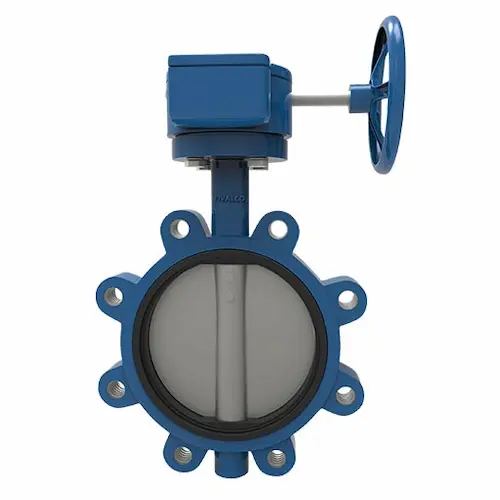

Full Lug-Type Butterfly Valve
Overview
Full Lug-Type Butterfly Valve, listed by Vcore Valve co., Ltd in Xiamen, Fujian. Seat material EPDM, PTFE, NBR, stem material Stainless Steel (304, 316) and size range DN40–DN1200 (1.5”–48”) are among the specifications published.
Technical specifications
| Disc Material | Stainless Steel (304, 316), Aluminum, Bronze |
|---|---|
| Seat Material | EPDM, PTFE, NBR |
| Stem Material | Stainless Steel (304, 316) |
| Size Range | DN40–DN1200 (1.5”–48”) |
| Pressure Rating | PN10 / PN16 / PN25 / 150LB |
| Connection Type | Lugged Flange (ANSI B16.34) |
| Actuation Options | Manual, Pneumatic, Electric Actuator |
| Standards Compliance | API 6D, ISO 9001, ANSI B16.34, AWWA C507 |
| Temperature Range | -20°C to +200°C (depending on lining material) |
