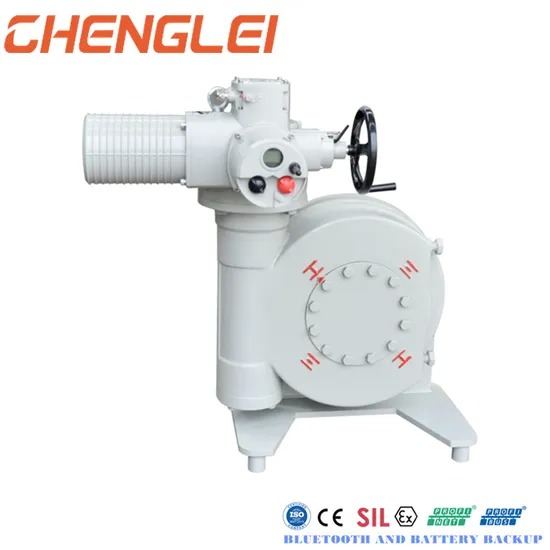

DQ Series 120V Air Magnetic Outdoor IP68/IP67 Electric Valve Actuator for Butterfly Valve
Overview
DQ Series 120V Air Magnetic Outdoor IP68/IP67 Electric Valve Actuator for Butterfly Valve supplied by Changzhou Chenglei Valve Technology Co., Ltd. Listed under Valve Actuators. Key published specifications: Connection Flange; Material Aluminum Alloy; Thermal Protection Yes; Bluetooth Connection Yes. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Connection | Flange |
|---|---|
| Material | Aluminum Alloy |
| Thermal Protection | Yes |
| Bluetooth Connection | Yes |
| Voltage | 380V/110V/220V/440V/660V AC Or 12V/24V DC |
| Rated Frequency | 50HZ/60HZ |
| Control Method | On-off Or Modulating.4-20mA |
| Motor Duty | S2 10min,15min,30min Or S1/S3/S4/S6 24%,40% |
| Protection Grade | IP65/IP67/IP68 |
| Insulation Level | F Level |
| Multiple voltage options | 380V/110V/220V/440V/660V AC or 12V/24V DC |
| Control methods | On-Off or Modulating (4-20mA) |
| Motor duty options | Short time (S2) or continuous time (S1/S3/S4/S6) |
| Protection grades | IP65/IP67/IP68 available |
| Environmental temperature range | -20°C to +60°C (special orders -60°C to +70°C) |
| Relative humidity | ≤95% at +25°C |
| Anti-corrosion coating | Electrostatic powder spraying |
