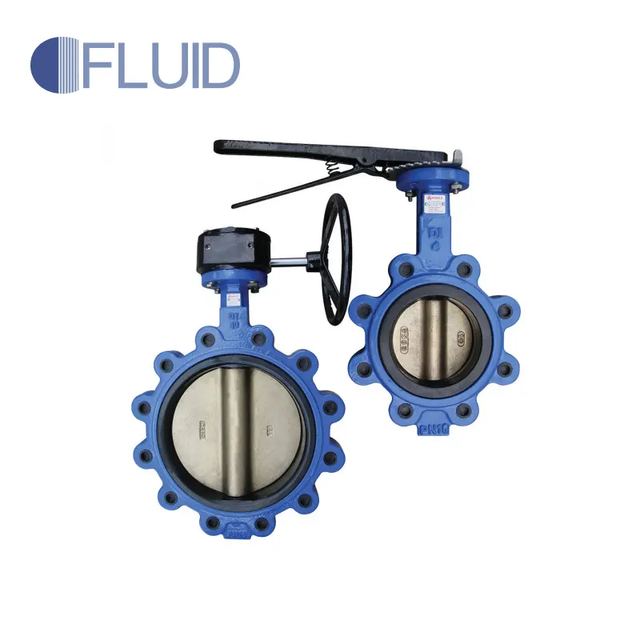

Lug Style Butterfly Valve
Overview
Lug Style Butterfly Valve supplied by Zhejiang Centro Flow Control Co., Ltd. Listed under Butterfly Valves. Key published specifications: No. Part; Aluminum Bronze SS304, SS316, Ductile Iron, Steel; EPDM Neoprene,Viton, NBR, PTFE; Lubricated Bronze Fiberglass Backed PTFE. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| No. | Part |
|---|---|
| Aluminum Bronze | SS304, SS316, Ductile Iron, Steel |
| EPDM | Neoprene,Viton, NBR, PTFE |
| Lubricated Bronze | Fiberglass Backed PTFE |
| Connection | Full Lug |
| Design Standard | DIN3202 |
| Flange Standard | BS4504 PN16 |
| Mounting Pad | ISO5211 |
| Pressure Rating | 16bar/232PSI |
