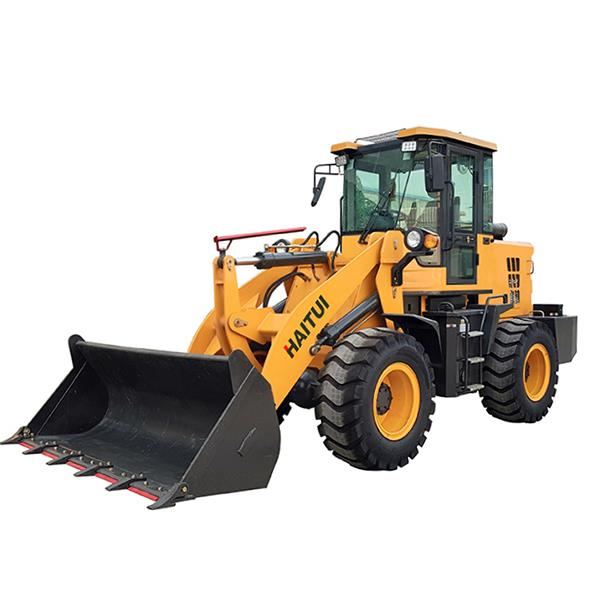

Front End Wheel Loader
Model ZL928A
Overview
Front End Wheel Loader supplied by Jining Haitui Heavy Industry Machinery Co.,Ltd. Listed under Loaders. Key published specifications: Operating Weight 5000 kg; Overall Dimensions L×W×H 5800×2100×2850 mm; Bucket Capacity 1.0 m³; Rated Load 2000 kg. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Operating Weight | 5000 kg |
|---|---|
| Overall Dimensions L×W×H | 5800×2100×2850 mm |
| Bucket Capacity | 1.0 m³ |
| Rated Load | 2000 kg |
| Max Speed | 25 km/h |
| Wheel Base | 2420 mm |
| Wheel Tread | 1550 mm |
| Engine Model | YUNNEI 38GBZ / CUMMINS 4BT3.9-C100 |
| Rated Power | 76 KW / 74KW |
| Max Dumping Height | 3400 mm |
| Min Turning Radius | 5200 mm |
| Type of Transmission | Hydraulic Transmission box, F2+R2 |
| Brake Control | Air Over Hydraulic Disc Brake On 4 Wheels |
| Operating Control | Mechanical / Hydraulic Joystick |
